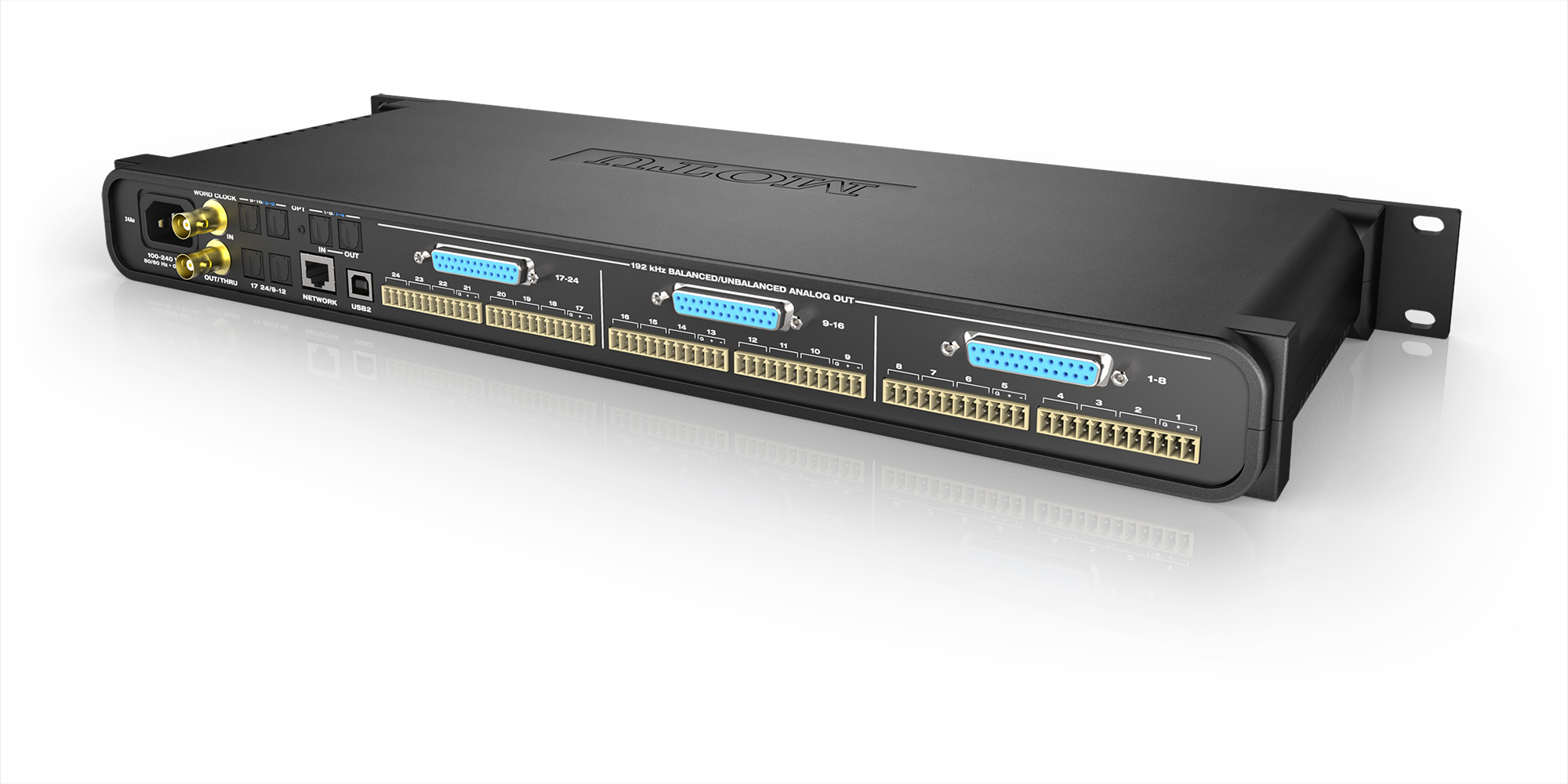

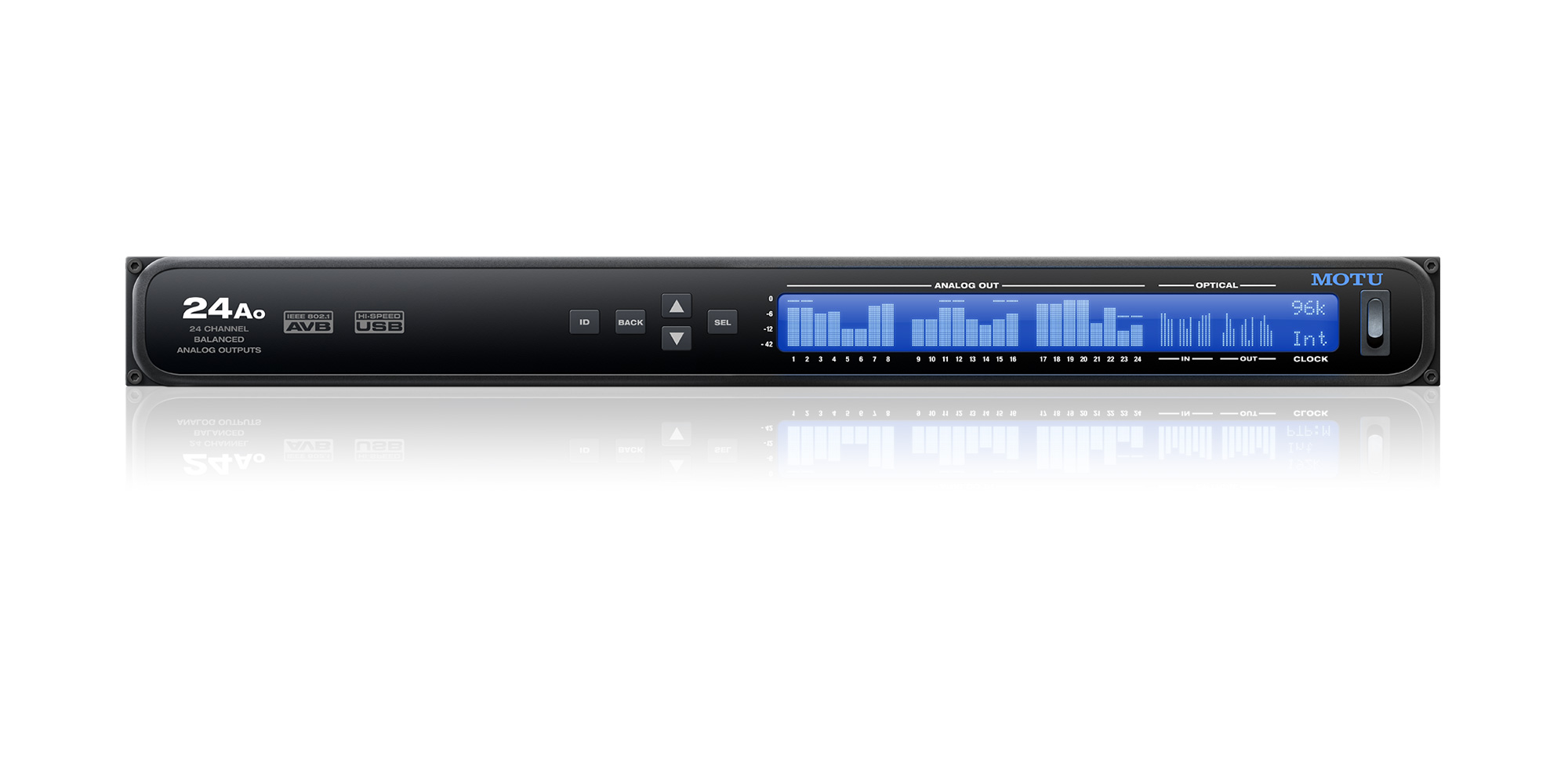

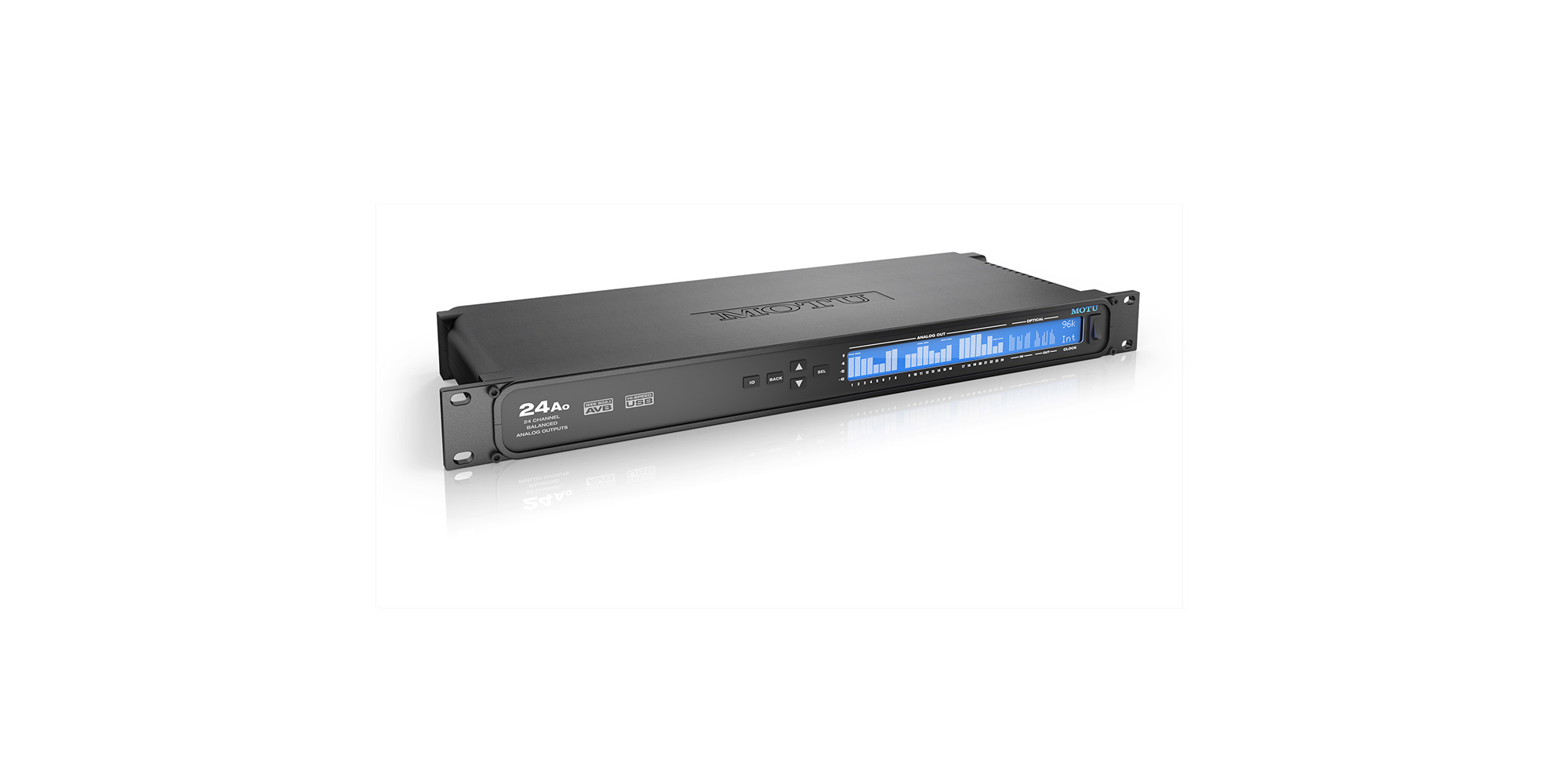

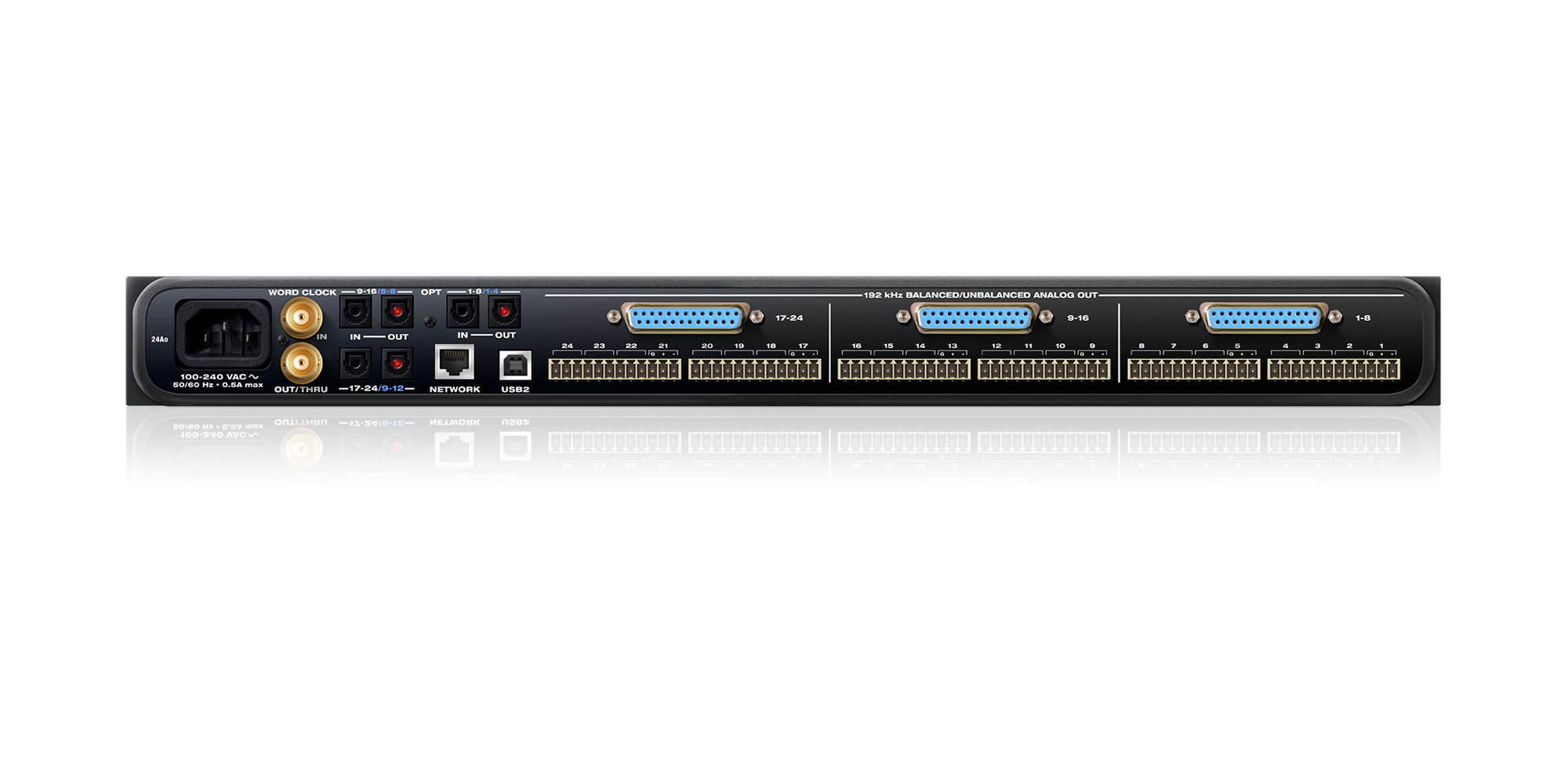

The new 24Ao connect to a computer through universally compatible USB 2.0, which provides more than enough bandwidth for 24 analog channels, even for a system that includes both a 24Ai (24 analog inputs) and a 24Ao (24 analog outputs). For expanded systems, users can employ a Thunderbolt-equipped interface, such as the 16A, for 256-channel computer I/O, with the 24Ai and 24Ao units connected through AVB networking, which supports hundreds of network channels. All devices on such a network can stream audio to and from the computer, and everything can be controlled simultaneously from any computers, tablets, and smart phones connected to the network.
The 24Ai and 24Ao share the same extensive feature set and technology platform as the 1248, 8M and 16A, including very high quality analog performance, digitally controlled analog trim on analog inputs, 32-bit DAC trim on analog outputs, 48-channel mixing modeled after large format mixing consoles, DSP effects with 32-bit floating point precision, flexible matrix-style routing and splitting, stand-alone operation, Wi-Fi control, and industry-standard AVB networking with sub-millisecond network latency.
