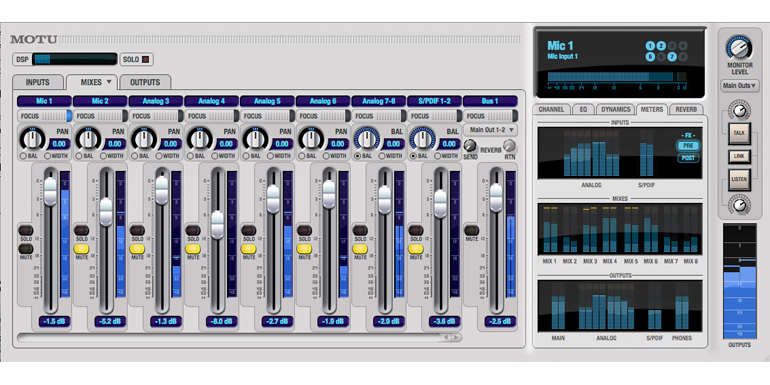

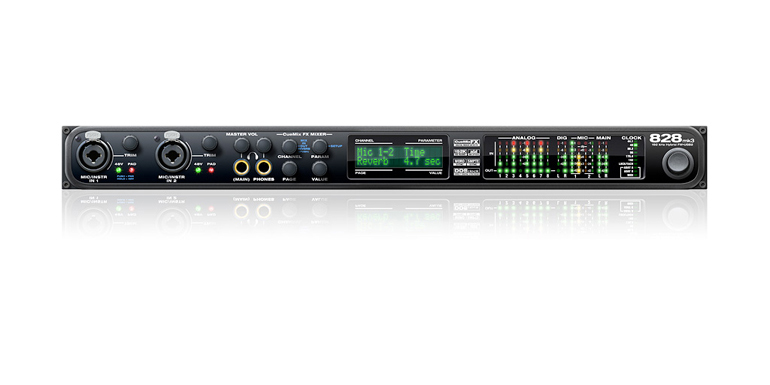

The 828mk3 Hybrid delivers innovative new features, universal “hybrid” FireWire/USB2 connectivity to your Mac or Windows computer, superb sound, and reliable performance.Feature summaryHybrid FireWire/USB2 connectivity – connect to your computer via either plug-and-play FireWire or hi-speed USB2.CueMix FXâ„¢ – flexible 28 input/16 bus mixer with on-board DSP effects, including reverb with sends/returns, plus EQ and compression on every input and output.28 inputs / 30 outputs (at 44.1/48 kHz) – there's no channel sharing in the 828mk3; the mic inputs, S/PDIF I/O, headphone out and main outs are all handled as separate channels.Front-panel control – access any setting in your entire 828mk3 mix directly from the front panel.Stand-alone operation – program your mixes at the studio and then bring the 828mk3 to your gig – no computer needed. Need to tweak the mix? Do it on site using the back-lit LCD and front-panel controls.Multiple CueMix FX mixes – for example, create different monitor mixes for the main outs and headphones. Or add send/return loops for outboard gear – with no latency.Two front panel combo jacks provide hi-Z 1/4″ guitar input or low-Z XLR mic input with phantom power, pad and plenty of gain.Mic/guitar instrument sends – add your favorite outboard EQ, preamp, reverb or other processor to the two mic/guitar inputs, before the signal goes digital.Clip protection – Mic/guitar input limiter prevents digital clipping and distortion from overloaded signal levels up to +12 dB over zero.Eight 24-bit 192kHz analog inputs and outputs on balanced/unbalanced 1/4″ TRS jacksPrecision Digital Trimâ„¢ – Digitally controlled analog trim on all analog inputs (mic/guitar inputs + quarter-inch TRS inputs) provides accurate adjustements in 1 dB increments. Fine-tune the balance of your analog inputs and then save/recall trim configurations.Flexible optical I/O – 16 channels of ADAT lightpipe, 8 channels of SMUX (96 kHz) or two pairs of stereo TOSLink. Mix and match formats between the two banks.Sample-accurate MIDI – connect a MIDI controller and/or sound module with no separate interface needed. MIDI I/O is sample-accurate with supporting software.Foot switch input – connect a standard foot pedal switch (sold separately) for hands-free punch-in and punch-out while recording. Or map the pedal to any keystroke function in your host software.Expandable – add additional interfaces for more I/O as your needs grow.Separate XLR main outs and front-panel headphone jacks, each with independent volume control.Stereo 24-bit 96kHz S/PDIF in/outWord clock in and outSMPTE in and outDC-coupled TRS outputs – can be used with Voltaâ„¢ (sold separately) to manipulate and sequence voltage-controlled modular synthesizers from a host DAW.Includes 32- and 64-bit native drivers for Mac OS X and Windows 8/7/Vista/XP, including ASIO, WDM, Wave, Core Audio, and Core MIDI. Supports all popular Mac and Windows audio software.100% compatible with all host-based effects processing in today's popular audio programs.Includes AudioDesk full-featured sample-accurate workstation software for the Macintosh with recording, editing, mixing, real-time 32-bit effects processing & sample-accurate sync.Plug-and-play operation with your Mac or PC via FireWire or high-speed USB 2.0.Front panel volume control for monitoring. Stereo, Quad, 6.1, 7.1 and user-defined surround monitoring setups available.Two front panel headphone jacks with independent volume controls.Front panel meters or activity LEDs for all analog, digital and MIDI I/O, plus SMPTE sync tach and lock LEDs.Dedicated front panel clock status LEDs.International 100-240V, 50-60 Hz autoswitching power supply.Chassis dimensions, excluding rack ears and front and back panel knobs and connectors: 19 × 7 × 1.75 inches (48.26 × 17.78 × 4.45 cm). Knobs and connectors extend up to 0.5 inch (1.27 cm) from front and back panels, adding 1 inch (2.54 cm) to depth. With rack ears attached, fits standard 19 inch (48.26 cm) rack at 1U high.
