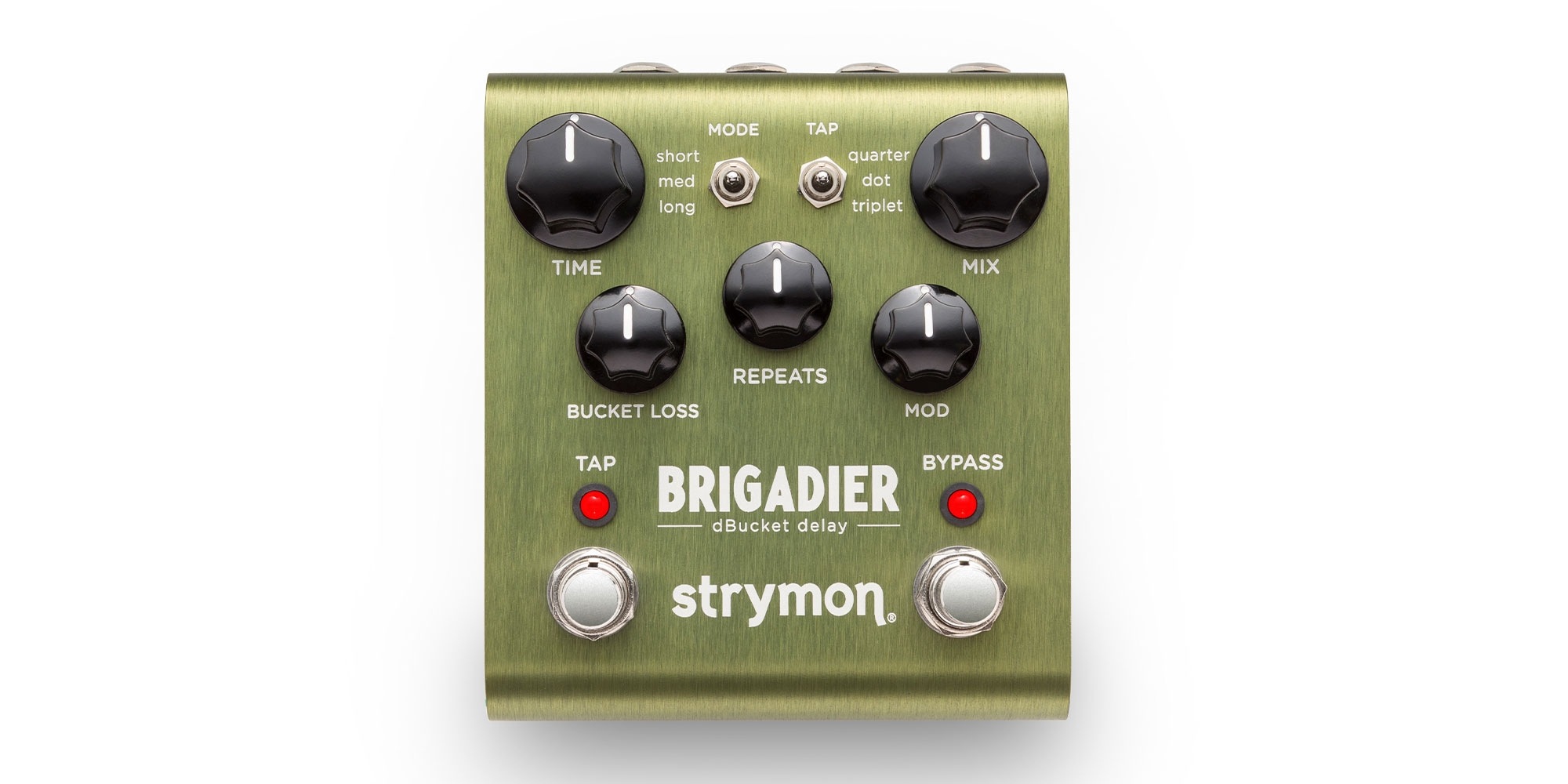

BRIGADIER

• Hand crafted dBucket algorithm for highly accurate reproduction of every stage of an analog bucket brigade chip and the associated • clock driver circuitry

• Bucket Loss control to vary the amount of loss that occurs at each stage of the dBucket

• 3 delay time modes: Short, Medium and Long

• Tap Tempo modes for quarter, dotted eighth, and eighth note triplets

• Filter control for adjusting the tone of the delay repeats

• Dedicated Modulation control

• Adjustable +/- 3dB boost or cut when the effect is engaged

• Press and hold Tap for Infinite Repeats

• High impedance mono input (internal jumper enables selectable TRS stereo input) Please read this FAQ for more info on the TRS input.

Stereo output

• Tap Tempo and Bypass footswitches

• Expression pedal input allows the connection of either an expression pedal (for selectable control over any knob parameter) or Favorite switch (to save a Favorite preset)

• ltra low noise, high performance 24-bit 96kHz A/D and D/A converters

• 115dB typical signal to noise

• Analog dry path for a zero latency dry signal that is never converted to digital

• +8dBu maximum input level easily handles instrument and line signals

• 20Hz to 20kHz frequency response

• Premium analog front end and output section

Super high performance SHARC DSP in a compact form factor

• 32-bit floating point processing

• True Bypass (electromechanical relay switching)

• Selectable Trails Mode with high quality, transparent Analog Buffered Bypass

• 9V center negative DC supply included, 250mA current draw

• Strong and lightweight green anodized aluminum chassis

• Crafted with love in the USA
