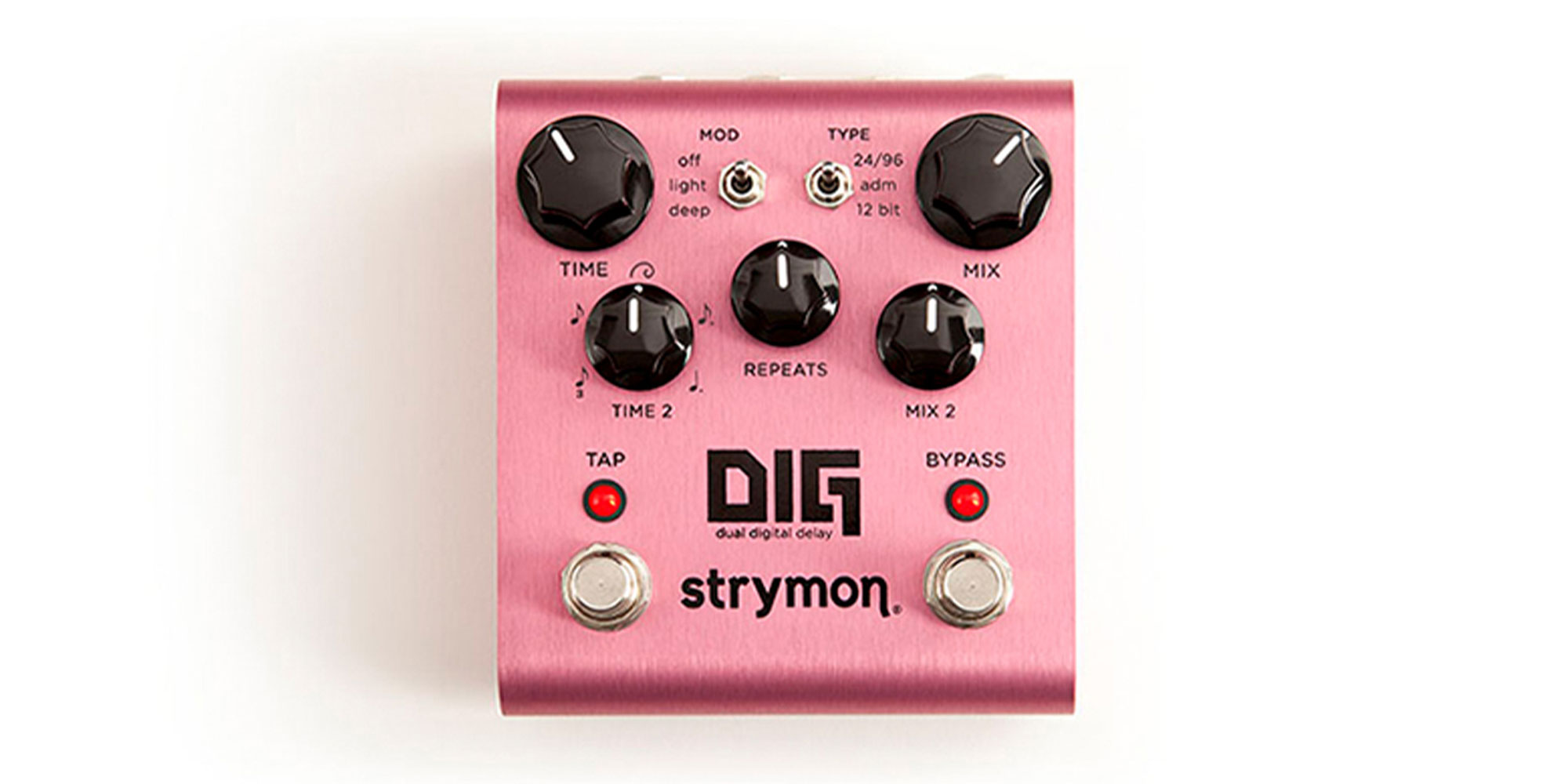

DIG

• Two simultaneous, integrated delays with captivating rack delay voicings from the 1980s and today, for incredible expressive potential

• Five controls: Time, Time 2, Mix, Mix 2, Repeats

• Five “hidden” controls: Delay 1 Subdivision, Sync/Free Mode, Filter, Config, Delay 2 Repeats

• Three Delay voicing: 24/96, adm, 12 bit

• Five different delay subdivisions: Triplet, Eighth, Golden Ratio, Dotted Eighth, Dotted Quarter

• Delay range from 20ms to 1.6s (40ms – 3.2s with Half Note Delay 1 subdivision)

• Three levels of delay line modulation: Off, Light, Deep

• Free Mode to independently dial in your desired delay time

• Three routing options: Series with Delay 2 feeding into Delay 1. Parallel with Delay 1 in the left channel and Delay 2 in the right channel. Ping Pong, each delay acts as a ping pong delay, interacting together when both Mix knobs are turned up

• Holding down the TAP footswitch enables circular repeats

• High impedance mono input (internal jumper enables selectable TRS stereo input)

• Stereo output

• Expression pedal input with selectable control over any knob parameter. Connect an optional miniswitch to save a favorite preset

• Tap Tempo and Bypass footswitches

• 20Hz to 20kHz frequency response

• 32-bit floating point processing

• +8dBu maximum input level easily handles instrument and line signals

• Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters

• 115dB typical signal to noise

• Analog dry path for a zero latency dry signal that is never converted to digital

• Premium analog front end and output section

• Super high performance SHARC DSP in a compact form factor

• True Bypass (electromechanical relay switching)

• Selectable Trails Mode with high quality, transparent Analog Buffered Bypass

• 9V center negative DC supply included, 250mA current draw

• Strong and lightweight gunmetal gray anodized aluminum chassis

• Crafted with love in the USA

• Dimensions: 11,4 x 10,2 x 4,4 cm

• Designed and built in the USA
