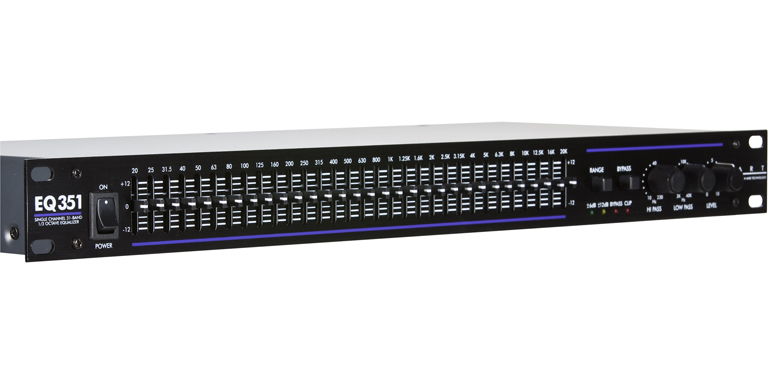

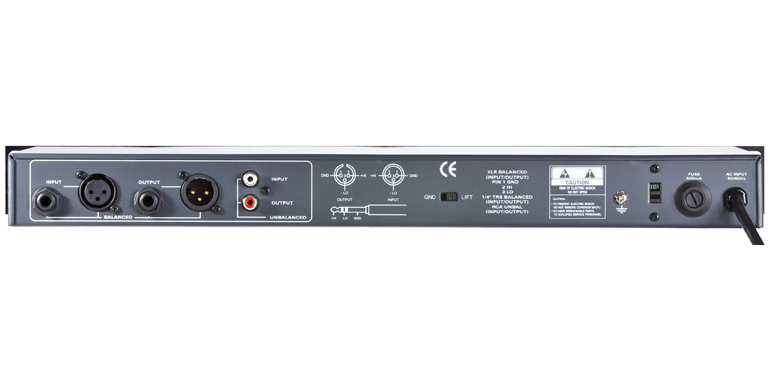

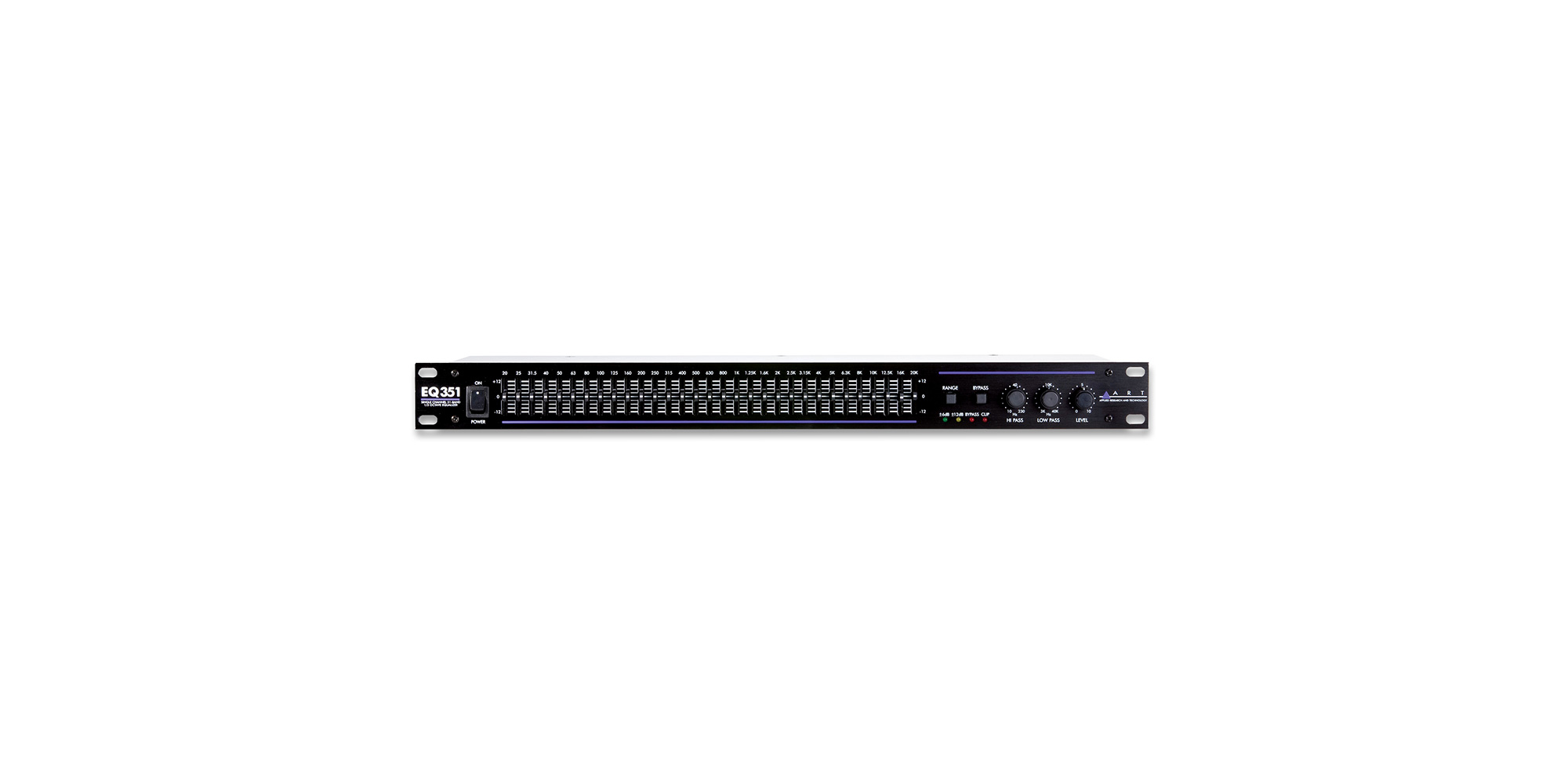

Single Channel 31-Band Graphic Equalizer Constant-Q Filtering Balanced XLR, Active Balanced 1/4″, and Unbalanced RCA Input and Output Connectors +/- 6dB or +/-12dB Level Adjustments 20mm Center Detented Frequency Band Sliders Independent Level and Bypass Controls Per Channel Designed for Years of continuous, reliable performance Rugged All Steel Construction One Year Warranty Specifiche tecniche Channel Separation >50dB Controls Power On/Off Switch; Filter Range Switch; Bypass Switch; Level Control; AC Voltage Selector; Ground Lift Switch Dimensions 1.75″H x 19″W x 8.5″D Filter Type Constant Q – 3% center accuracy Frequency Bands 31, 1/3 octave, ISO spacing Frequency Response 20Hz to 20kHz, +0.5dB Indicators 6dB/12dB Range LEDs; Bypass and Clip LEDs Input Impedance 20k ohms (bal), 15k ohms (unbal) Input/Output Connections Active balanced XLR and 1/4″ TRS {XLR pin 2/ 1/4″ tip = Hot (+)} Unbalanced RCA Maximum Input Level +22dBm Maximum Output Level +18dBm (bal), +22dBm (unbal) Output Impedance <150 ohms (Typ) Power (Switchable) 95-130VAC, 50/60Hz Power Consumption 12 watts Range +/-6dB or +/-12dB selectable Signal to Noise Ratio -94dB Slider Travel 20mm w/ positive center detent Total Harmonic Distortion 0.01% Weight 4.5lbs. (2.5kg)
