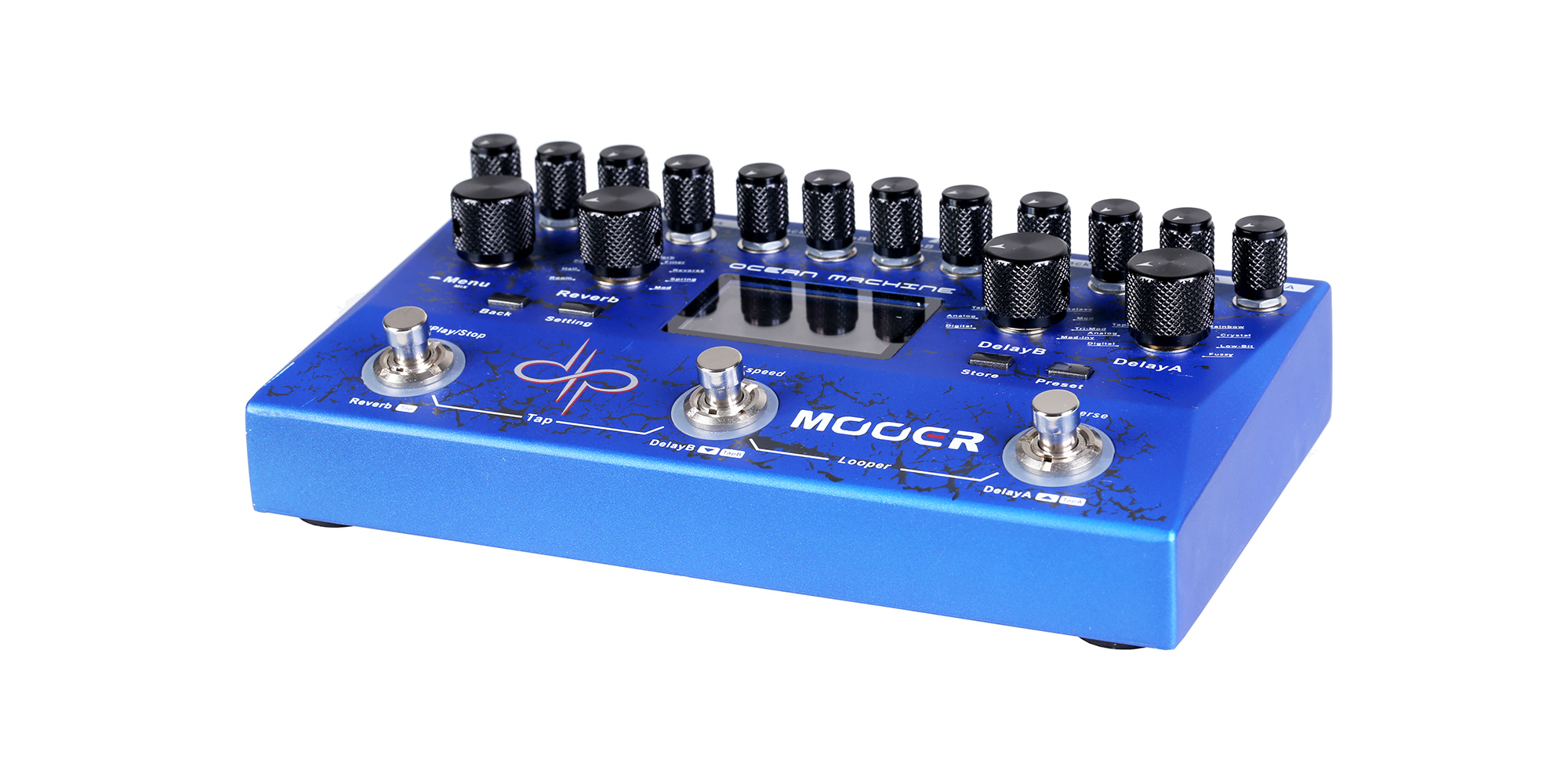

Devin Townsend signature reverb/delay/looper effects pedal
True Bypass
2 independent delays
9 different delay types each
0-2.000 ms delay time
Ping Pong effect
9 different reverb types
Order of effects in chain programmable
Freeze function
Tap tempo functionality
Looper with up to 44 seconds of recording time
2 modes of operation
8 banks with 3 presets each
MIDI programmable

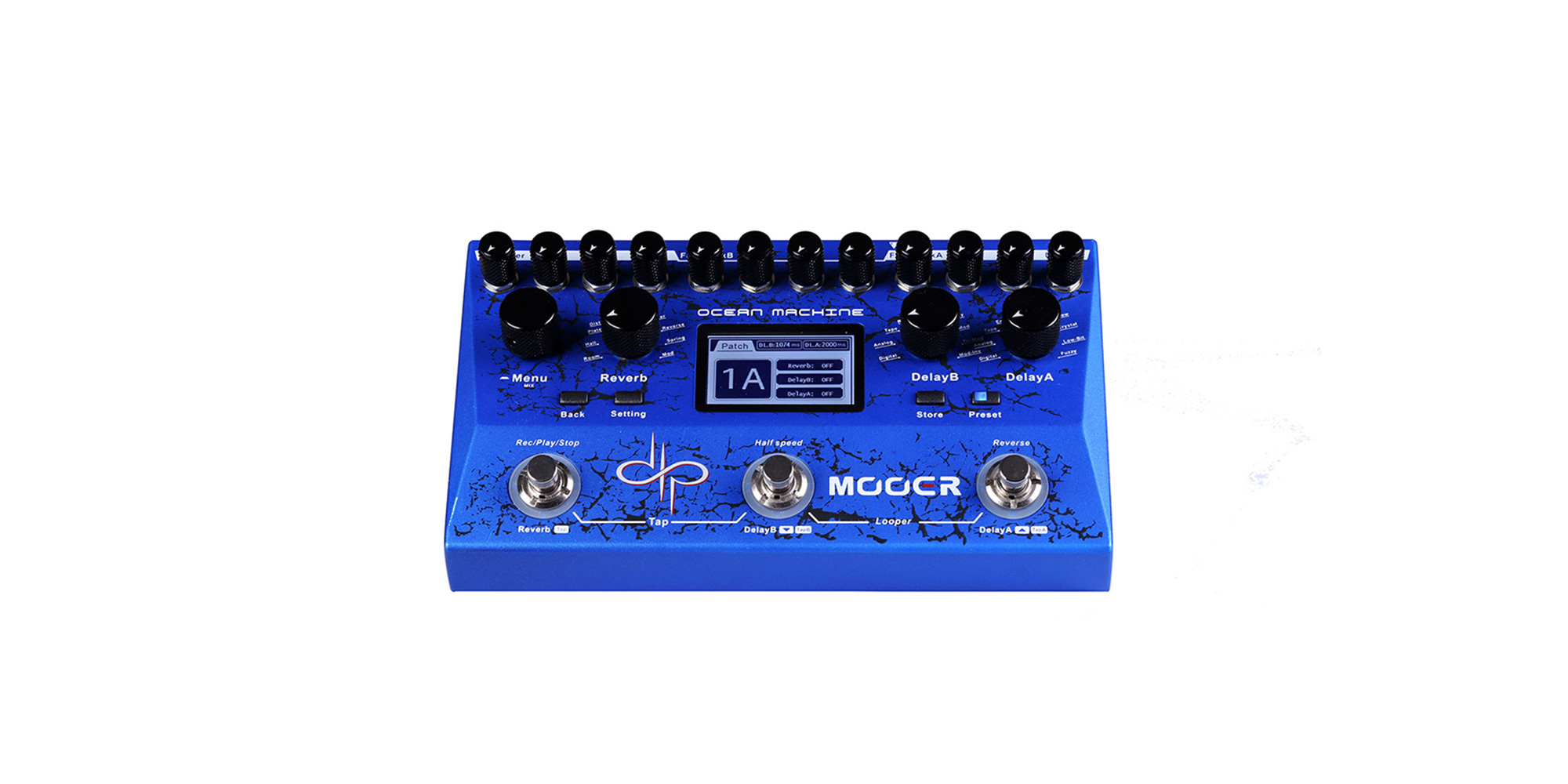

Reverb section controls for Shimmer, Decay Tone and R. Mix
Reverb rotary switch for selecting Reverb mode (Mod / Spring / Reverse / Filter / FL-Verb / Dist-Verb / Plate / Hall / Room)
Delay A section controls for Feedback A, Time A, Tone A and D-Mix A
Delay A rotary switch for selecting Delay A mode (Fuzzy / Low Bit / Crystal / Rainbow / Liquid / Echo / Tape / Analog / Digital)
Delay B section controls for Feedback B, Time B, Tone B and D-Mix B
Delay B rotary switch for selecting Delay B mode (Mod-Inv / Tri-Mod / Mod / Galaxy / Dyna / Real / Tape / Analog / Digital)
Reverb footswitch
Delay A Footswitch
Delay B Footswitch
Control buttons for Preset, Store, Setting and Back
Menu rotary button for navigating the preset menu, status LEDs,
metal housing

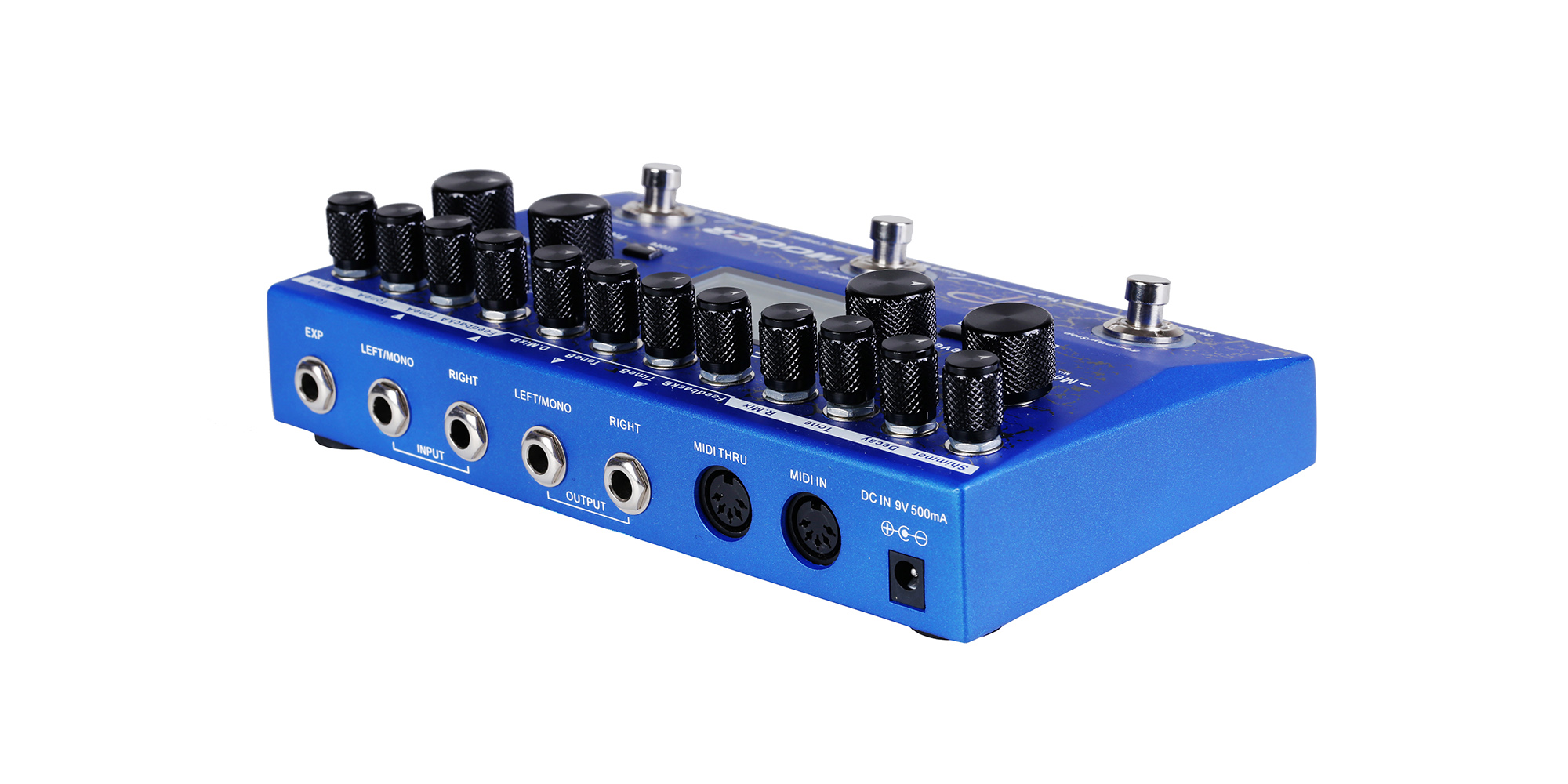

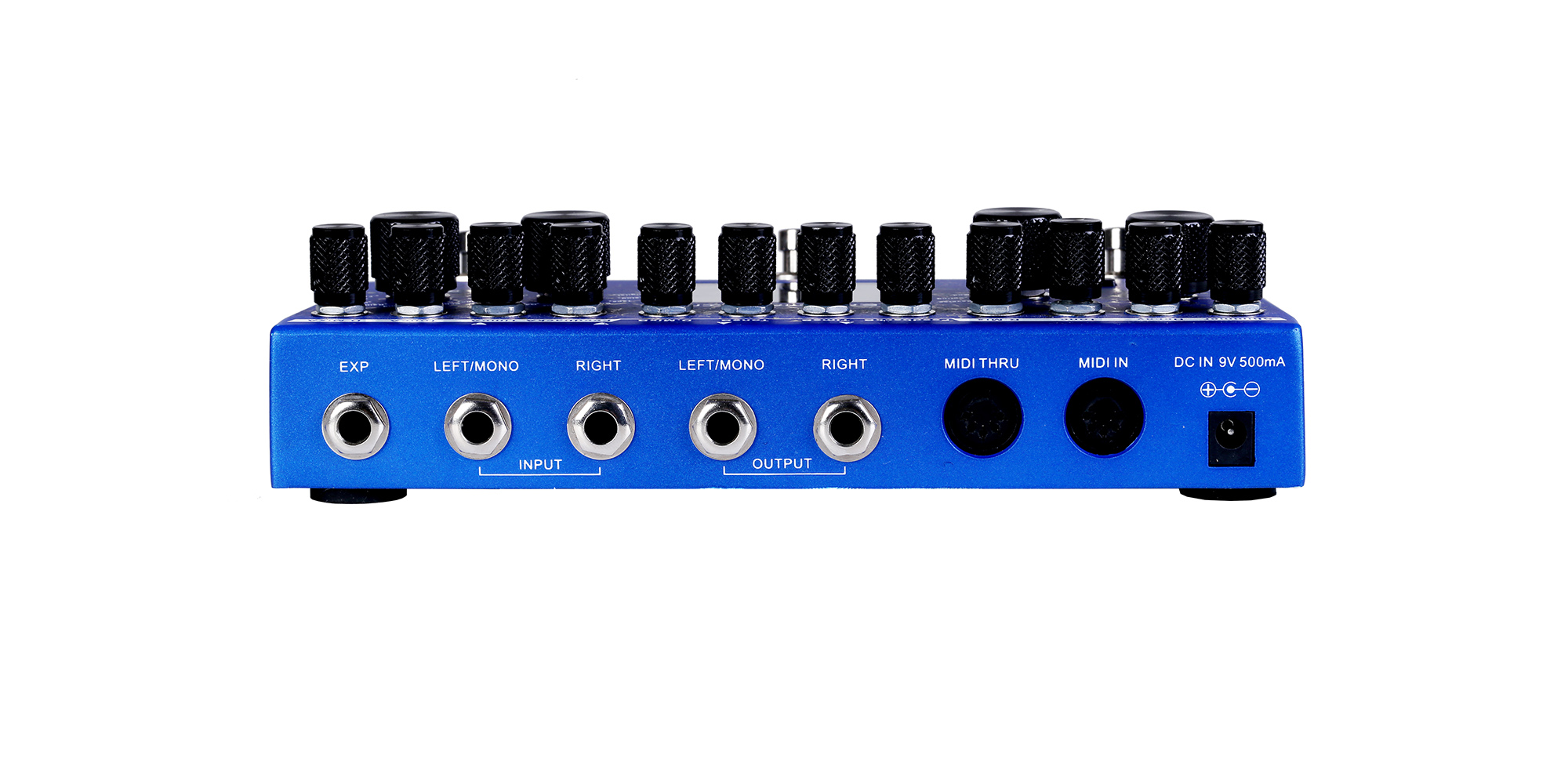

6.3 mm mono input L/R jacks
6.3 mm mono output L/R jacks
MIDI in jack
MIDI thru jack
6.3 mm TRS expression input jack, power supply via optional 9V DC (Mooer PDNW-9V2A-MP) adapter (not included) 2.1 mm x 5.5 mm barrel plug, polarity (-) center
Battery operation not supported
Current draw 500 Ma
Dimensions (L x W x H) 112 mm x 215 mm x 55 mm
Weight 1.120 g
