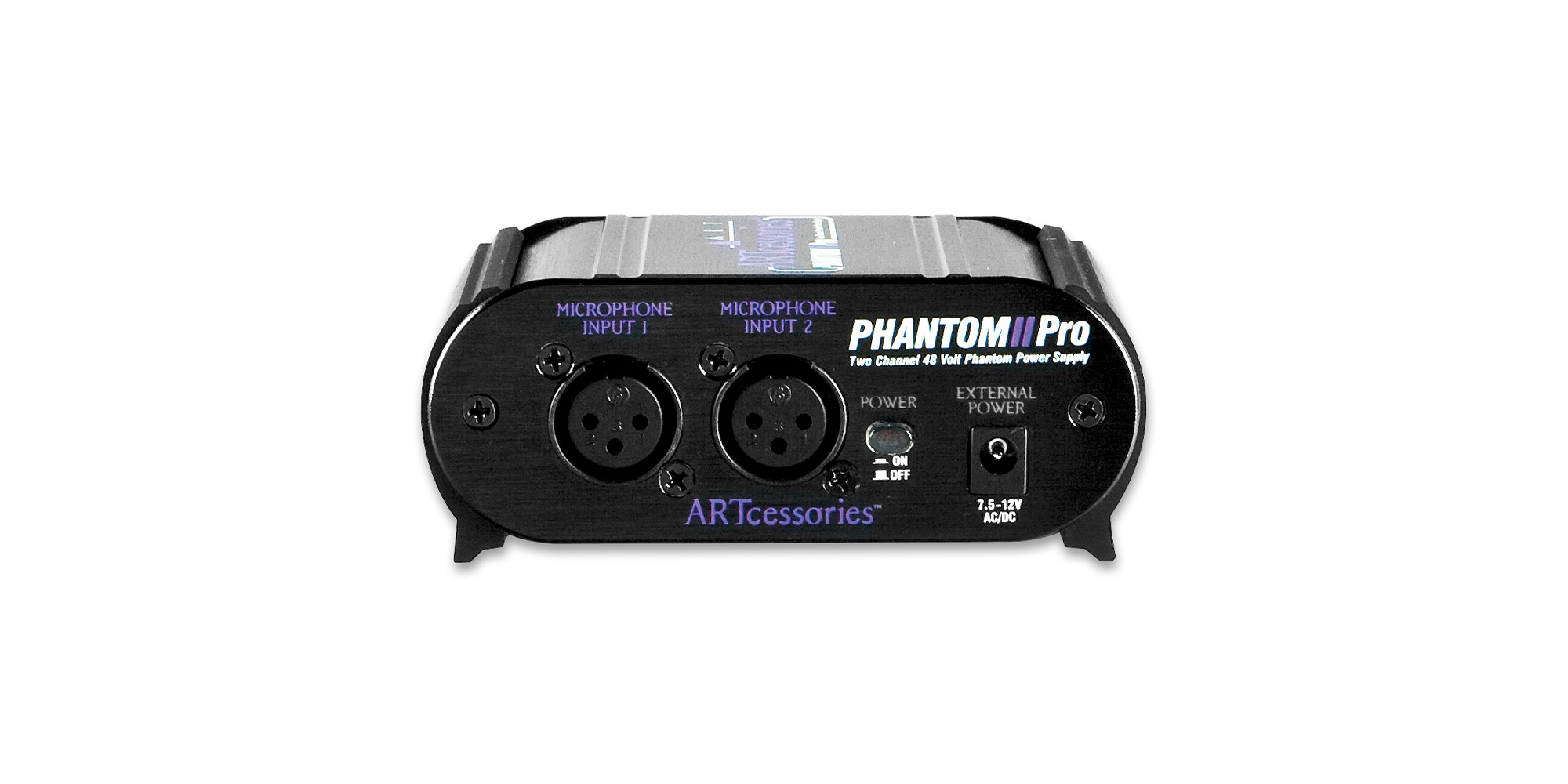

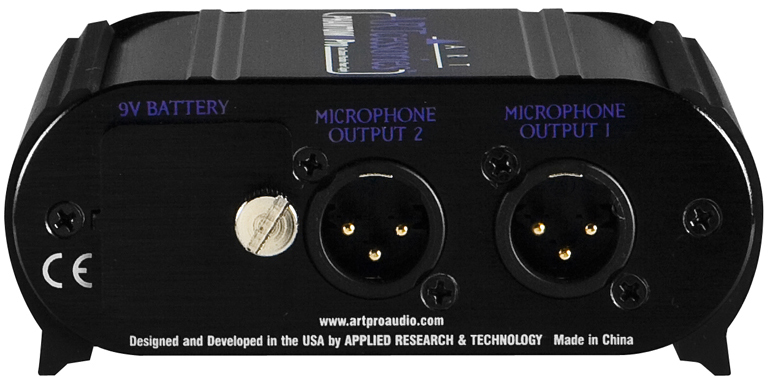

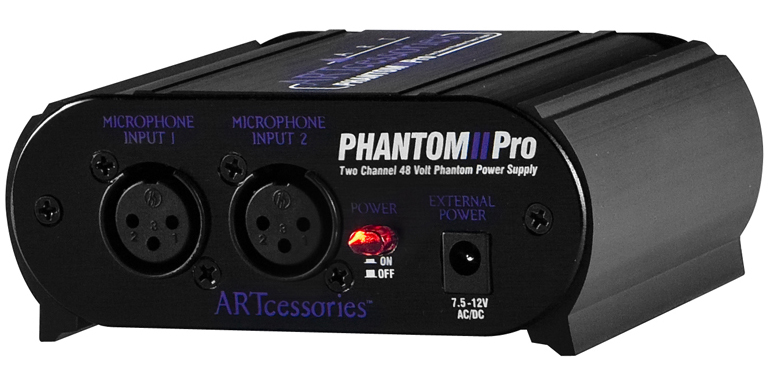

Dual Channel Phantom Power Supply Features XLR connectors for balanced inputs and outputs Low power, high efficiency CMOS circuitry for Long battery life using a standard 9 Volt battery (Alkaline recommended) Can be powered with an external power supply from AC mains Rugged extruded aluminum case with accessible battery compartment LED lighted On/Off switch Low noise, low distortion circuitry Specifications: Input Connections: Female XLR (2) Output Connections: Male XLR (2) Phantom Power Voltage: 48 Volts DC typical Current Limiting Resistors: 6.98k Ohms (1%) Power Source: V battery (ANSI-1604A type Alkaline recommended) or external 7.5-12V AC/DC, 10 hours with Alkaline battery – typical (full load) Dimensions (in): 1.85 H x 4.6 W x 3.9 D Dimensions (mm): 47 H x 117 W x 99 D Weight: 0.82 lbs / 0.37 kg
