• Input type 1/4” Unbalanced TS
• Input impedance 1MΩ
• Max Input Level 7Vpp (+10dBu)
• Output Type 1/4” Unbalanced TS
• Output Impedance 100Ω
• Max Output Level 7Vpp (+10dBu)
• Power Connector Center negative 2.1 x 5.5 mm barrel plug (the standard 9V)
• Frequency Response 20Hz to 22kHz
• EQ LOW FRQ Boost/Cut ± 9dB, 600Hz corner Freq.
• EQ HI FREQ Boost/Cut ± 10dB, 1.5kHz corner freq.
• Indicator Check indicator white LED

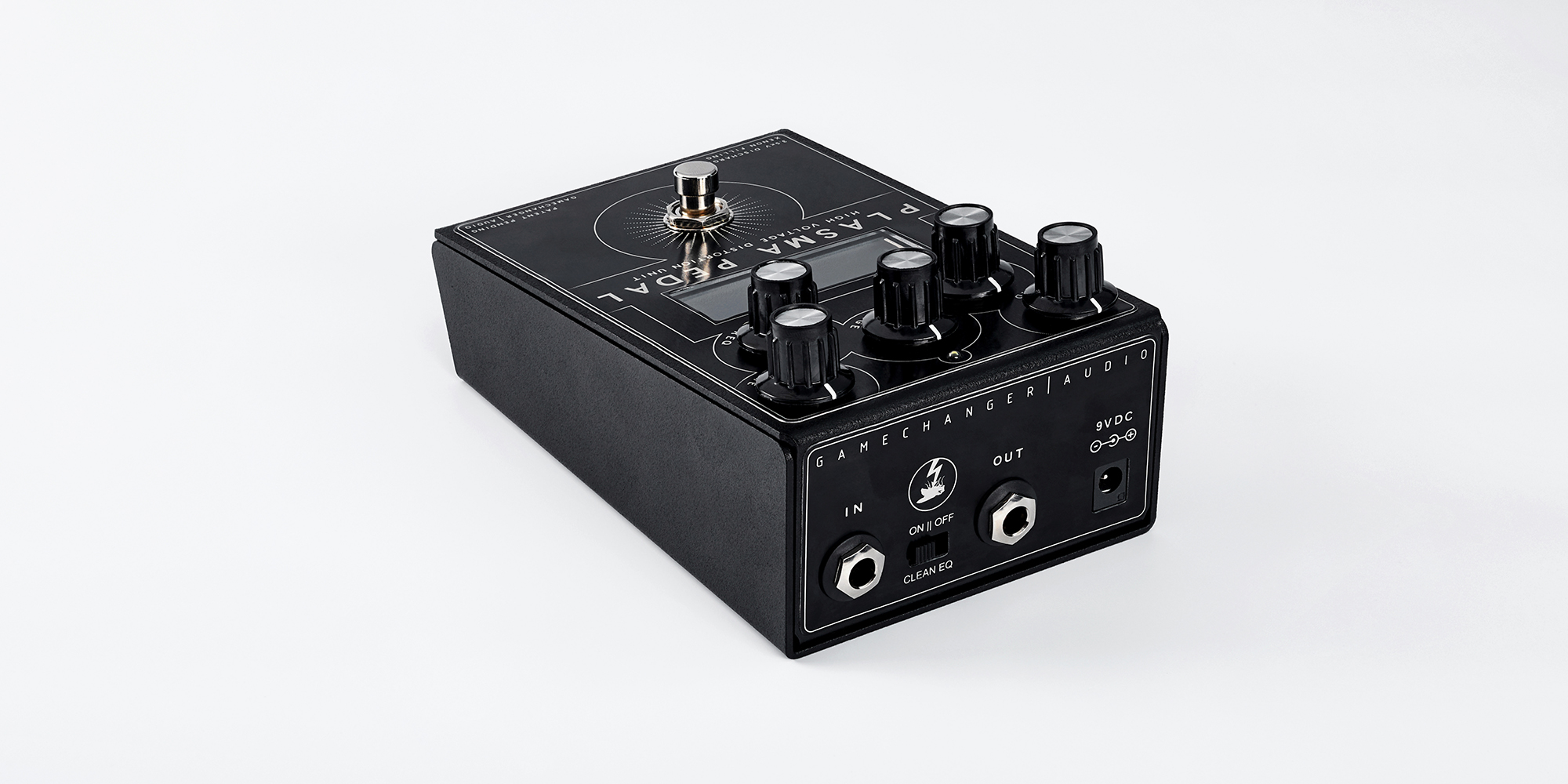

• Connectors IN, OUT, DC input
• Power Requirements 300mA, 9VDC
• Peak Power Consumption 2.7 W
• Mean Power Consumption 1 W
• Power Consumption during Stand-by 0.025 W
• Dimensions 148 mm * 96 mm * 70 mm
• Weight 840 g / 1.8 lbs
€299,00
10 in stock

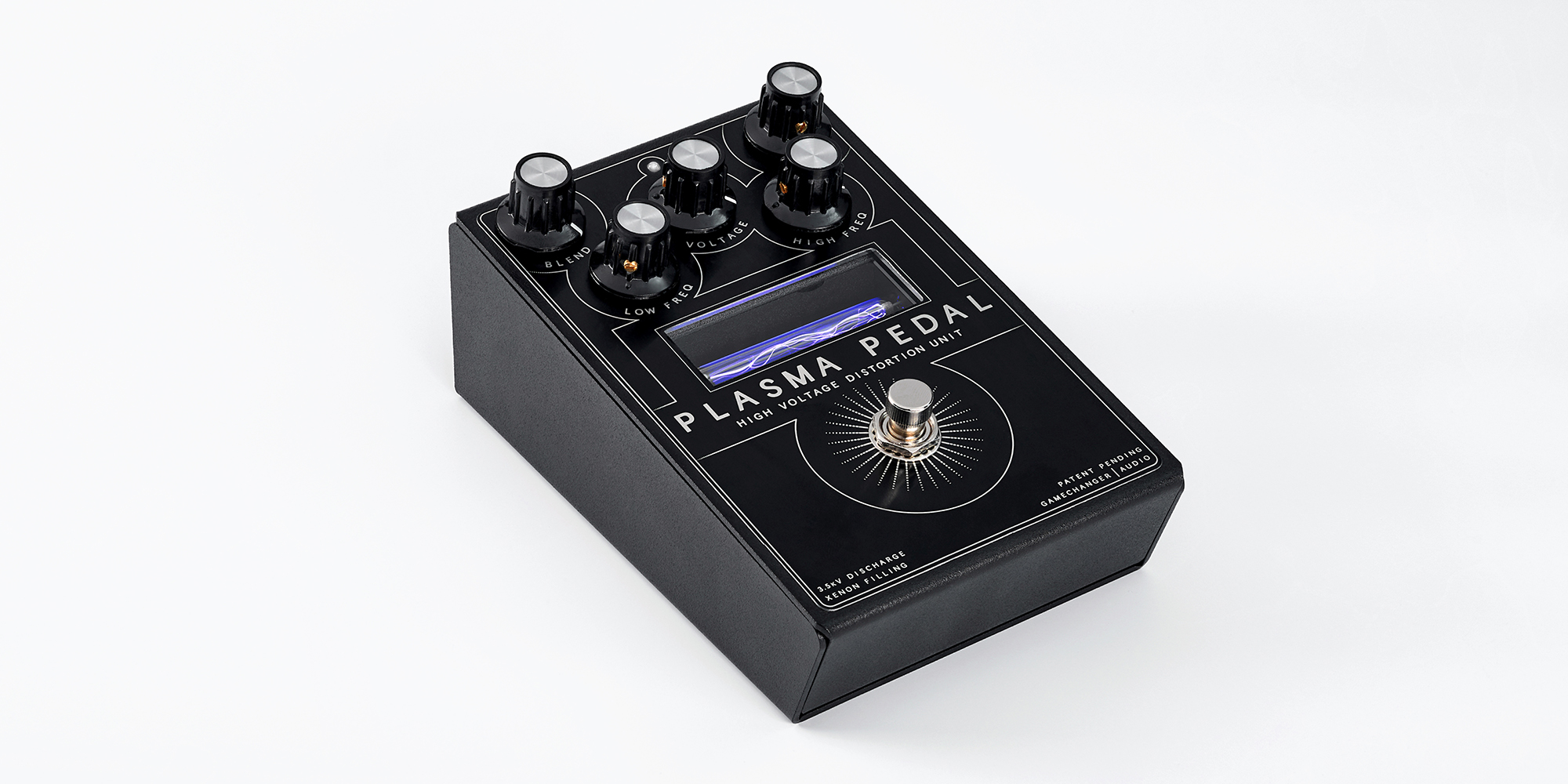

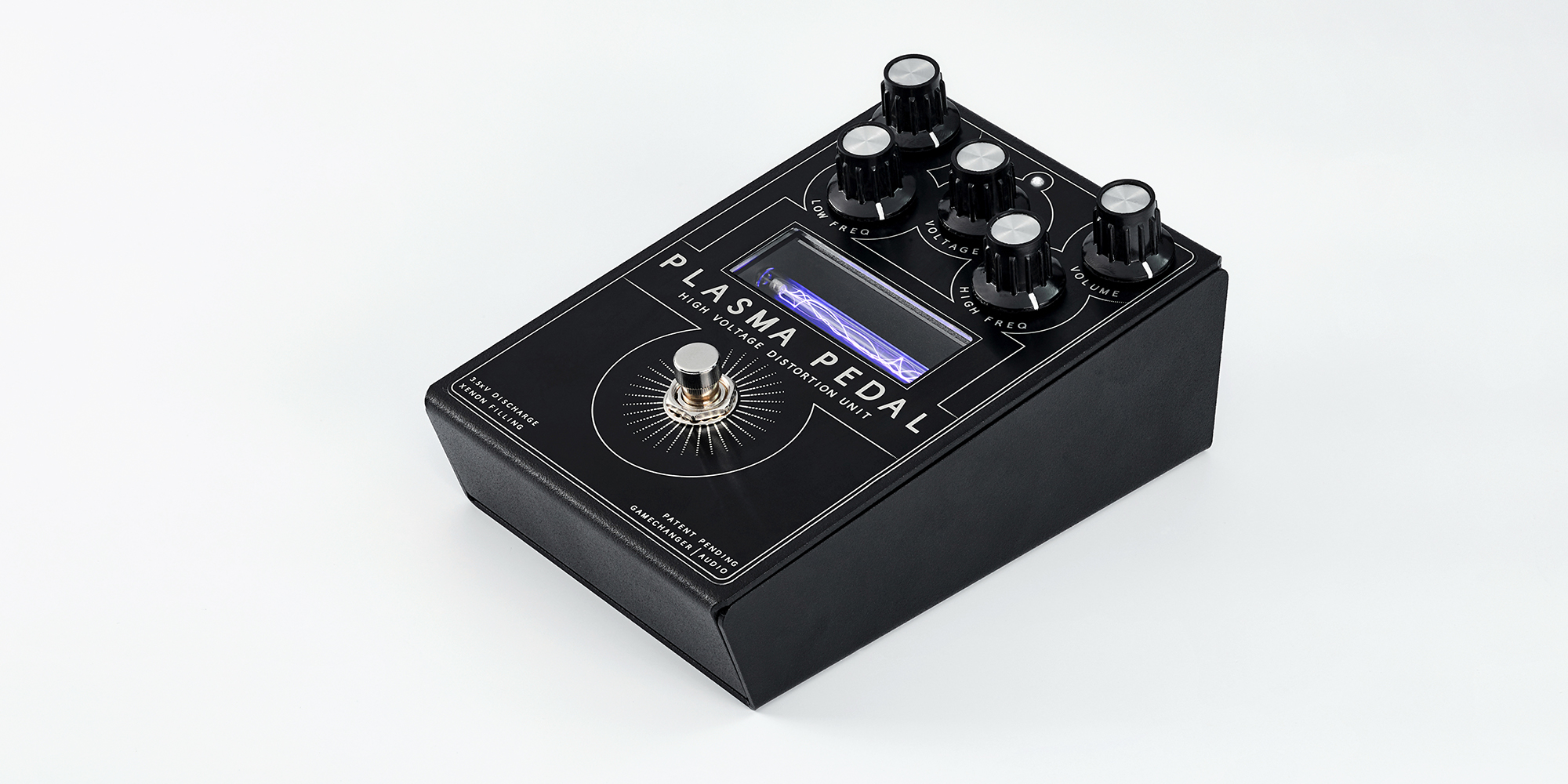

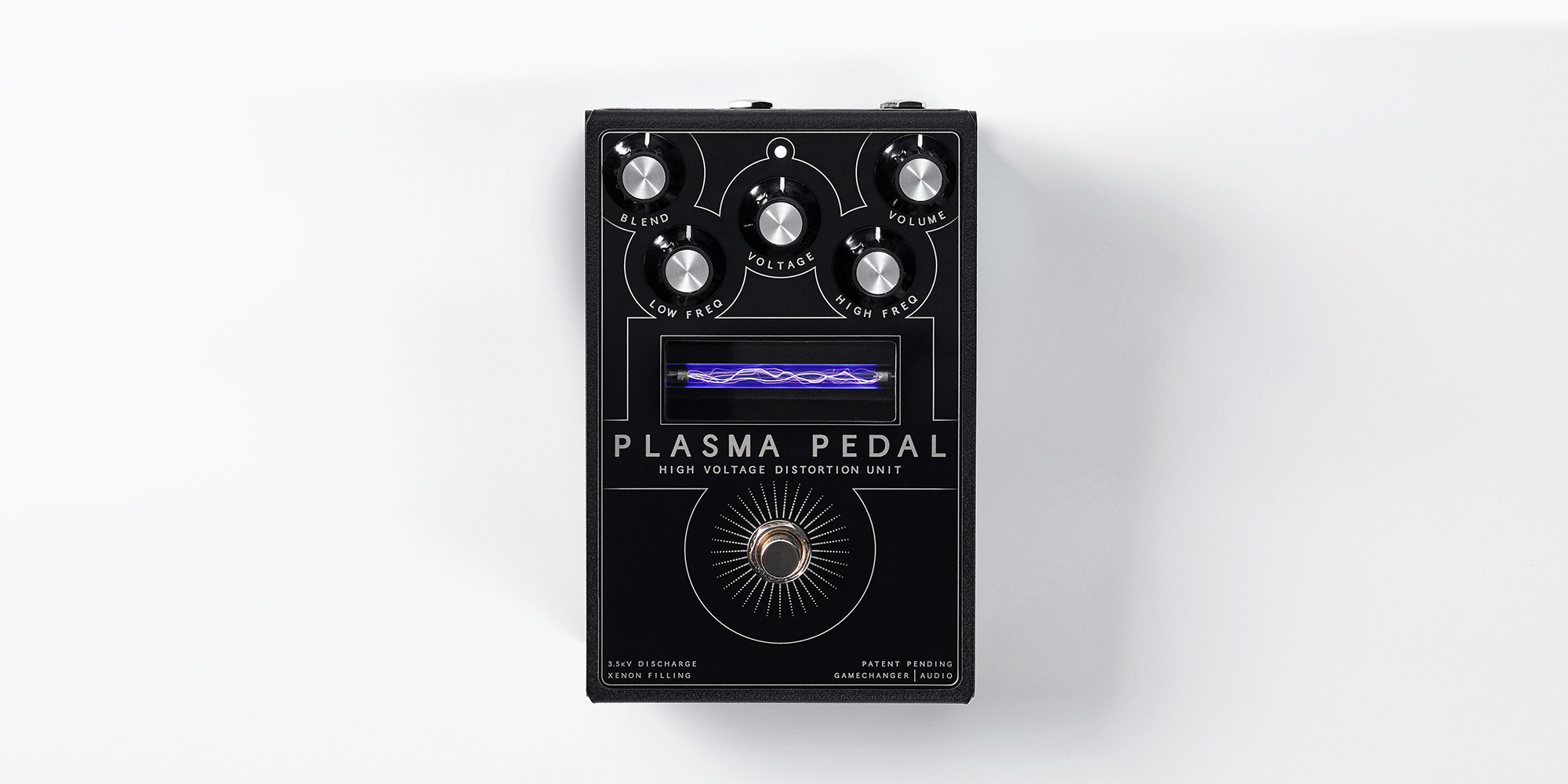

The PLASMA PEDAL is a revolutionary approach within the realm of overdrive and distortion, as it is a new and previously unexplored method of achieving signal clipping. Instead of using LED circuits, transistors or vacuum tubes to produce overdrive, the PLASMA PEDAL transforms your instrument’s live signal into a series of continuous high-voltage discharges within a xenon-filled tube. In essence – you are playing a bolt of electricity, and the electrical discharges produced by your instrument are instantly converted back into an analog audio signal, producing a quick, responsive, and extremely heavy distortion with TONS of unique character!
