Output Power, 8 Ohms: 2 x 140 W RMS /Ch
Output Power, 4 Ohms: 2 x 200 W RMS /Ch
Output Power, 2 Ohms: 2 x 100 W RMS /Ch
Output Power, 16 Ohms: 2 x 80 W RMS /Ch
Bridged Output Power, 16 Ohms: 280 W RMS mono
Bridged Output Power, 8 Ohms: 400 W RMS mono
Bridged Output Power, 4 Ohms: 200 W RMS mono
Bridged Output Power, 70V line: 280 W RMS 70Vline
Minimum Load Impedance: 2 Ω /Ch, 4 Ω mono
CMRR: >60dB (typical @ 1kHz)
Frequency Response: 20Hz to 20kHz, +/- 0.5dB
Total Harmonic Distortion: 95dB below Clipping
Input Sensitivity: 0.707 Volt for full power
Idle Current: (120Vold AC Mains) 0.23 Amp (29 W)
AC Supply Type: Digital Switching (~48 kHz)
Amplifier Type: Digital Switching (~435kHz)
Overall Efficiency: >78% @ full power (4 & 8 Ω operation)
Dimensions: 1.75″H x 19.0″W x 9.5″D (4.5 x 48.3 x 16.5cm)
Weight: 7.5 lbs (3.4 kg)
Power Requirements: USA -90-125VAC 50-60Hz 875VA(max.)
EUROPE -230VAC 50Hz-60Hz 875VA(max.)
Export units configured for country of destination.
€449,00

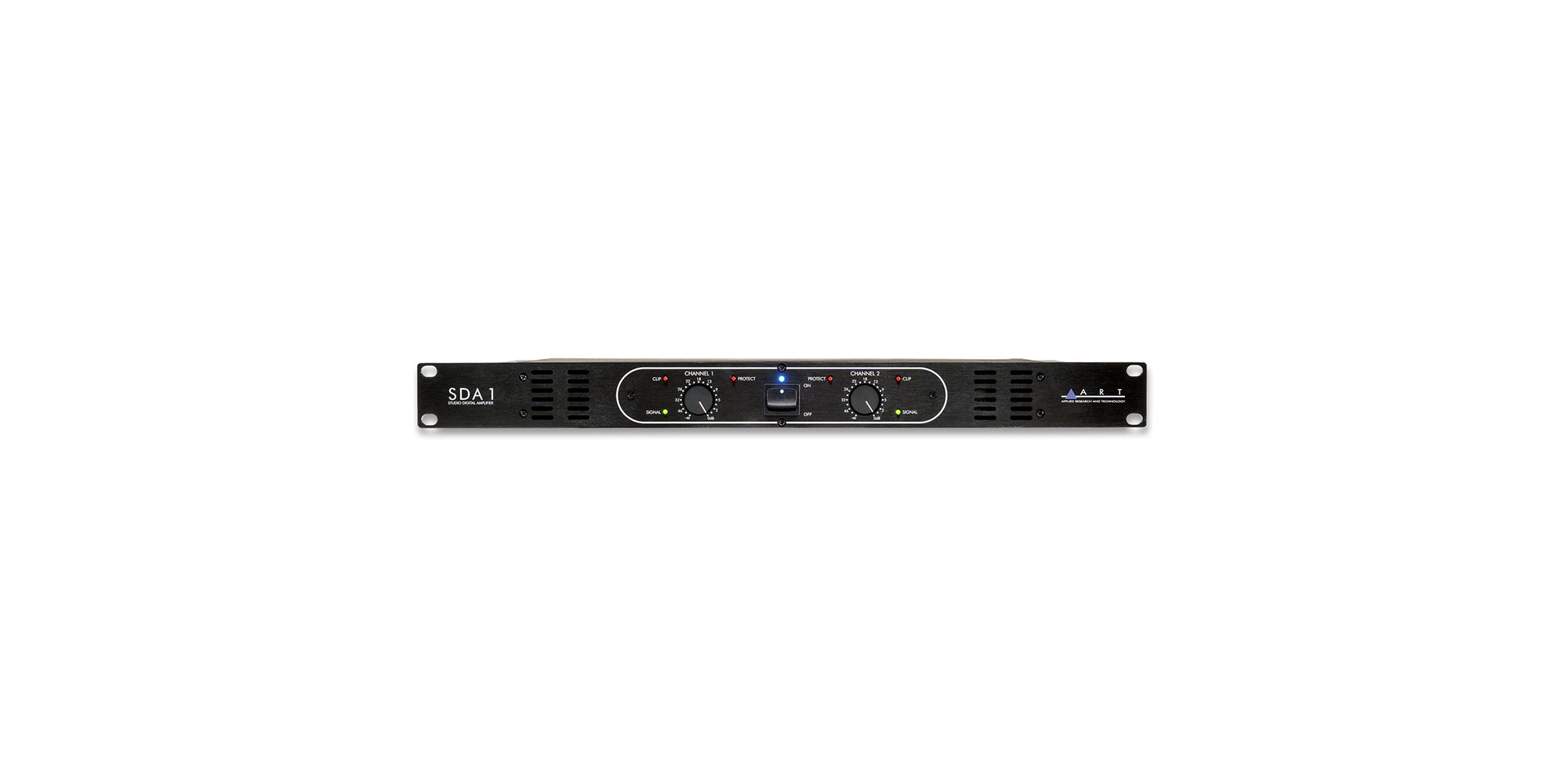

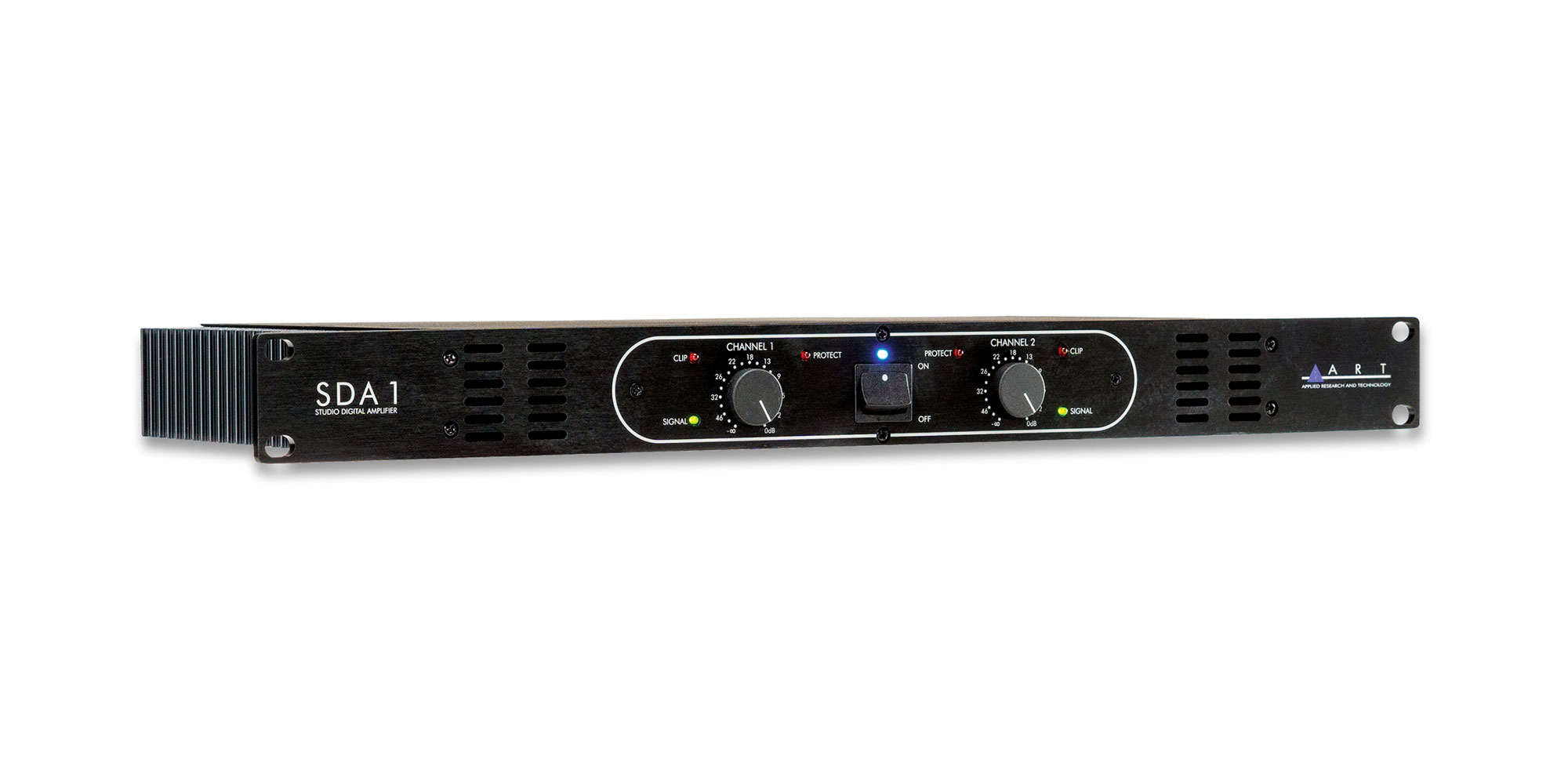

The extremely efficient Class-D topography used in the ART SDA1 Studio Digital Amplifier delivers 200 watts per channel (at 4 ohms) in a compact, single rack space chassis. Taking advantage of the full potential of digital amplifier design, the SDA1 doesn’t require noisy, dust collecting cooling fans in operation, making it the ideal solution for studio control rooms and installations.
SDA-1 Applications
– Flat 20Hz to 20kHz frequency response makes the SDA1 the perfect choice for critical listening in studio environments

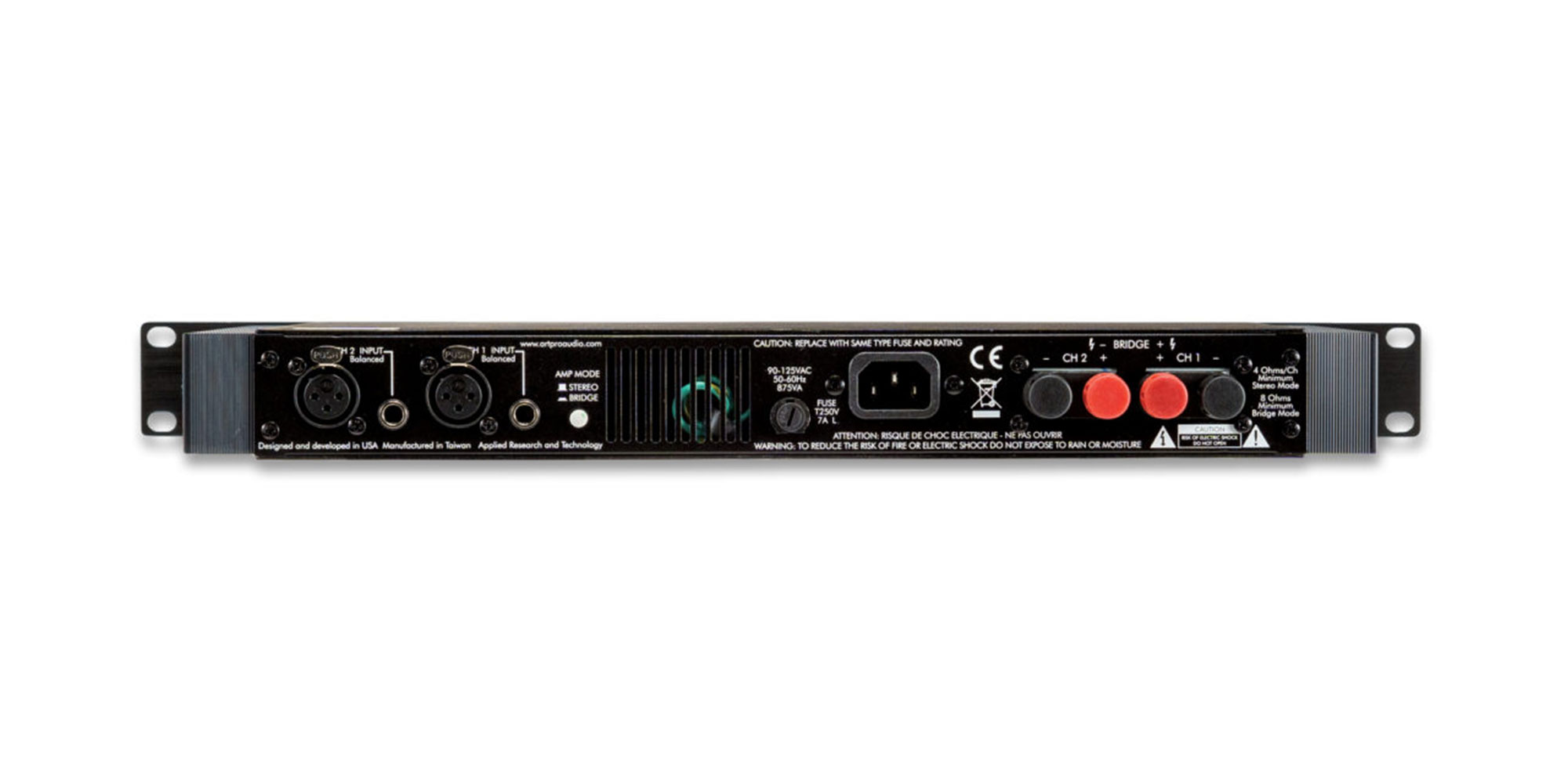

– Balanced inputs and versatile multi-way binding post outputs ensure quick connectivity to any source and speaker combinations, including 70v commercial installation systems
– Solid steel and aluminum chassis design ensures maximum reliability.
– Recessed ‘pop-up’ detented attenuator knobs deter uninvited users adjusting volume settings in install applications
