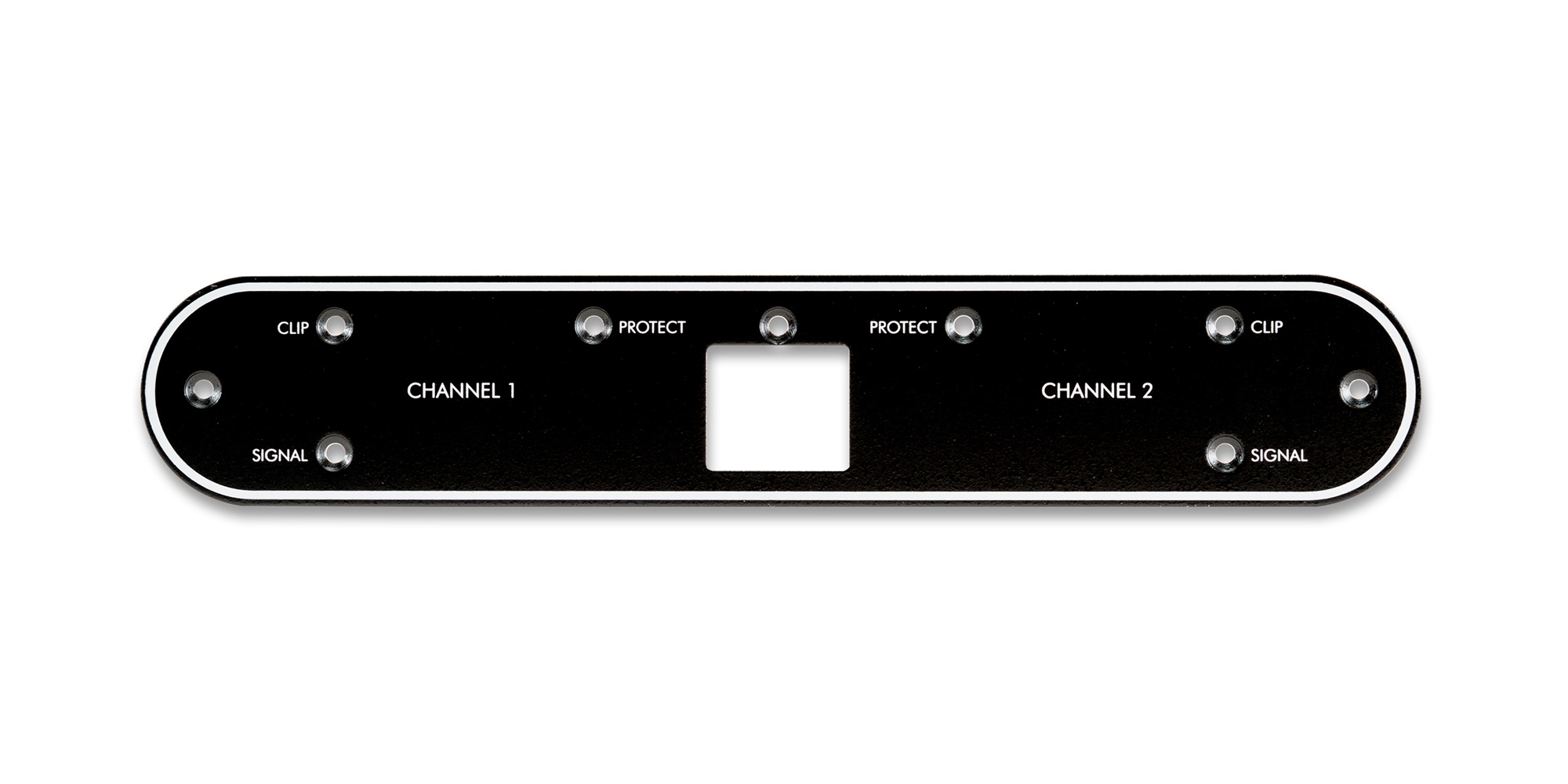

Toroidal Transformer 200 watts per channel @ 8 Ohms 560 watts bridged mono @ 8 Ohms 10 Hz – 40 kHz within +/- .5 dB XLR, Euroblock & 1/4″ inputs Includes tamper-proof faceplate SmartFan Silent Cooling System Low Profile 1U Rack Mountable Extemely Low noise, Discrete Linear Design All Steel Chassis Specifiche tecniche Bridged Output Power, 16 ohms Bridged Output Power, 8 ohms 560 watts MONO CMRR > 60dB (typical @ 1kHz) Dimensions 1.75″h x 19″w x 13.5″d Frequency Response 10Hz to 40kHz, +/- .5dB Hum and Noise > 100dB below clipping Input Impedance 44k ohms (bal), 22k ohms (unbal) Input Sensitivity 1V for full power output Input/Output Connections IN: XLR, Euroblock (bal), 1/4″ TRS (bal/unbal) Minimum Load Impedance, Mono Minimum Load Impedance, Stereo Power Requirements USA 120vac 60 Hz 1000 watts (max) 1000 watts (max) Slew Rate Stereo Output Power, 4 ohms 280 watts RMS per channel Stereo Output Power, 8 ohms 200 watts RMS per channel Total Harmonic Distortion > 0.05% (typical) Transformer Type Toroidal Weight 19.8 lbs (9 kg)
