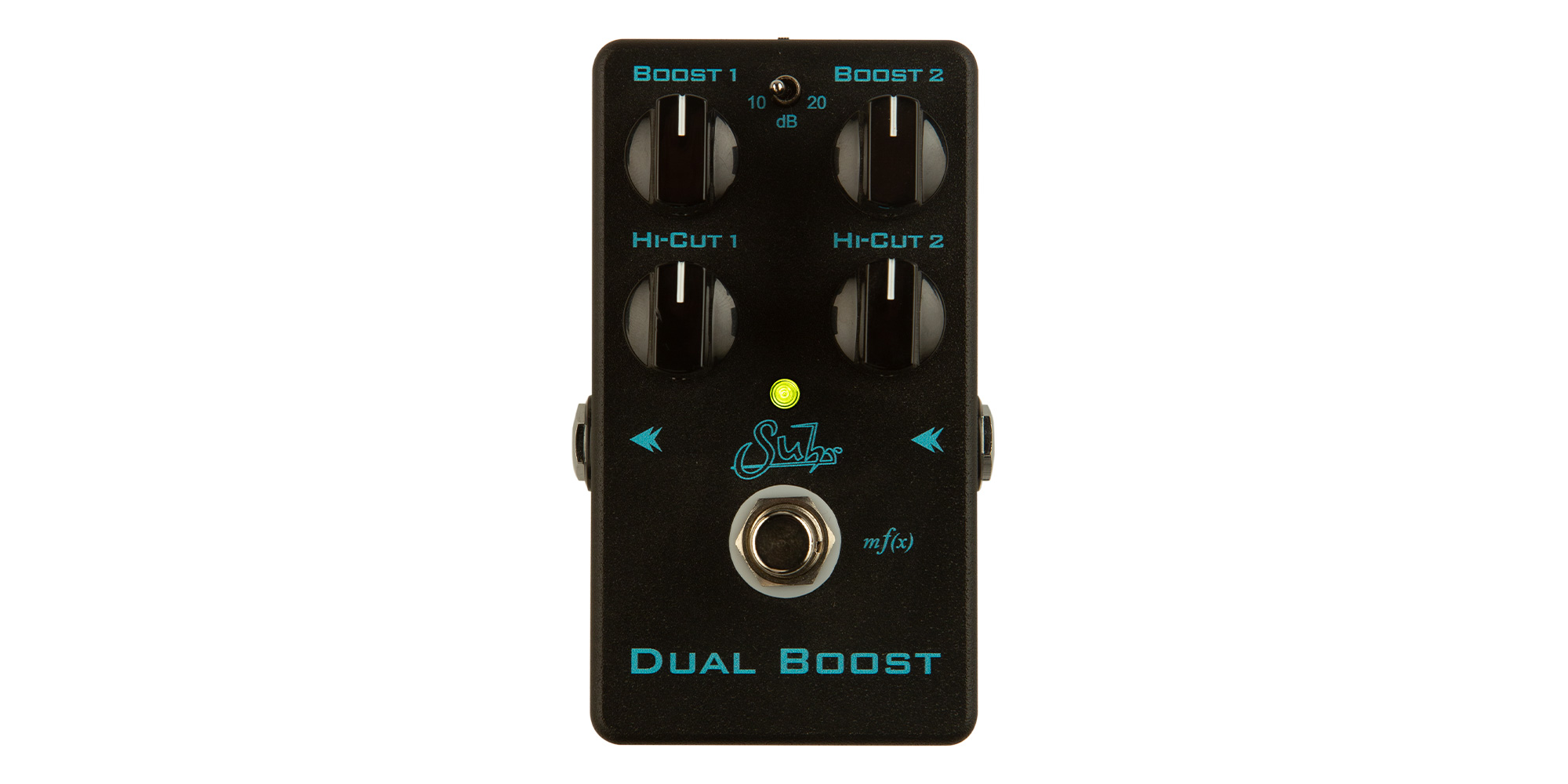

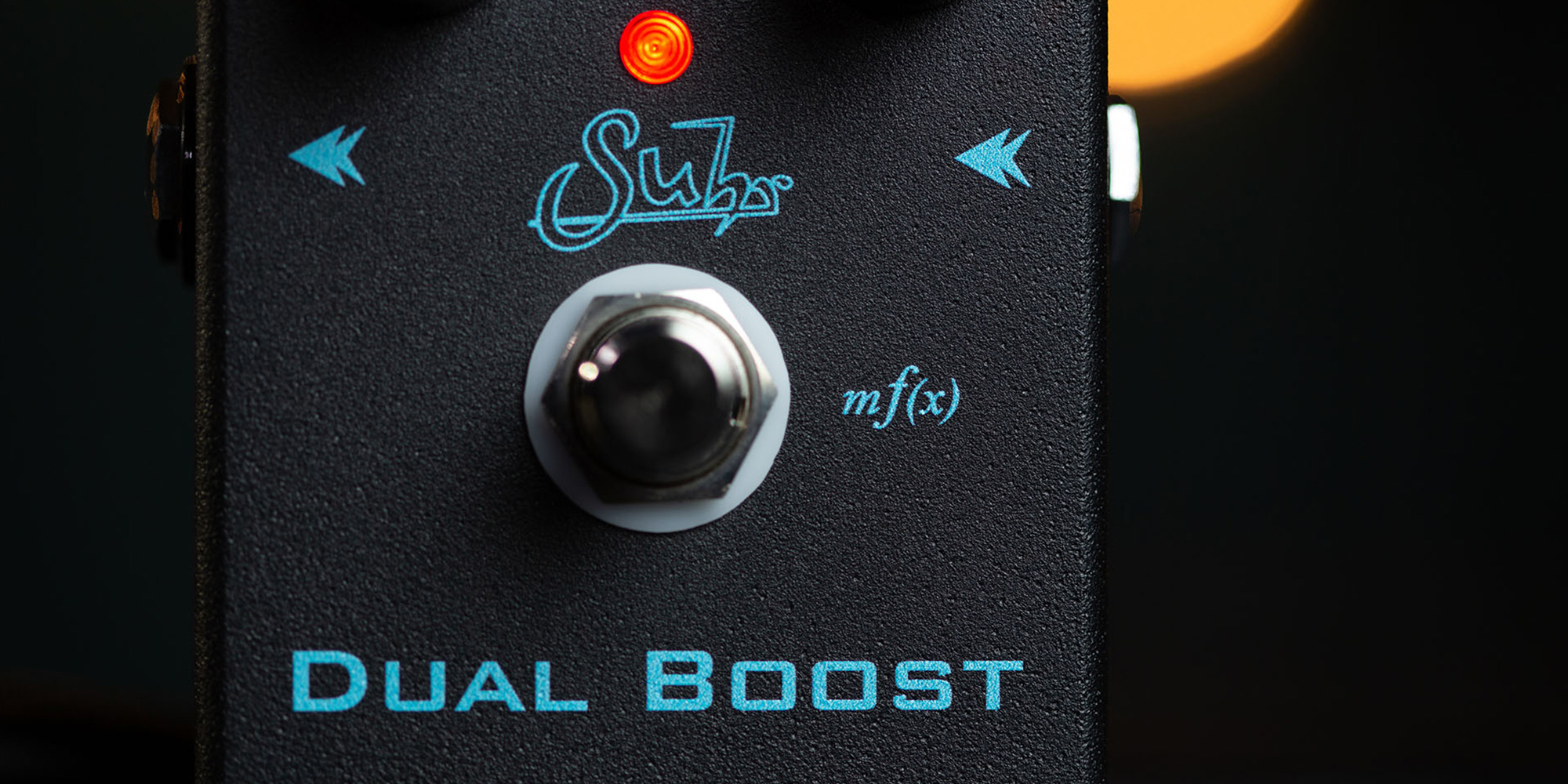

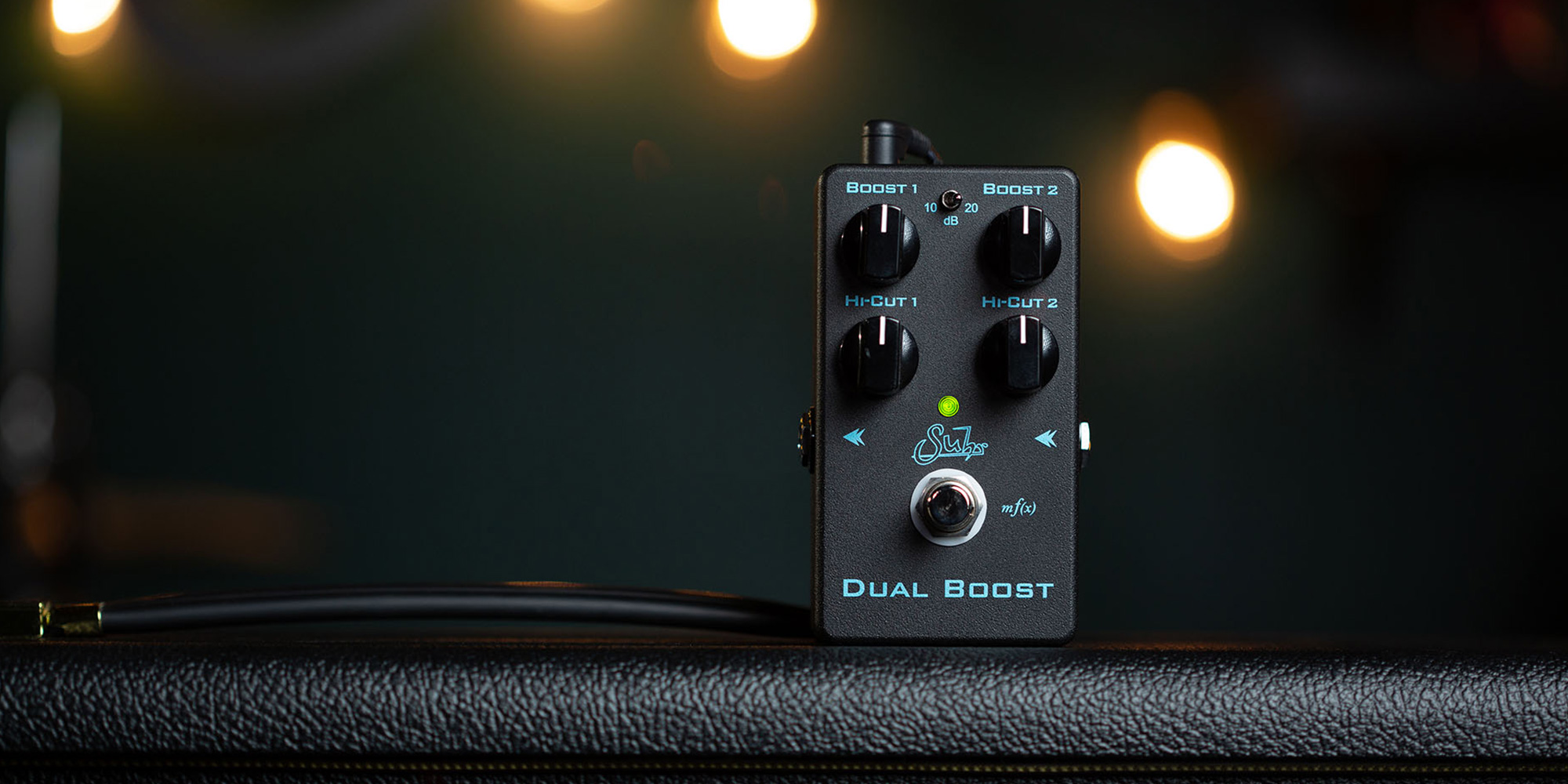

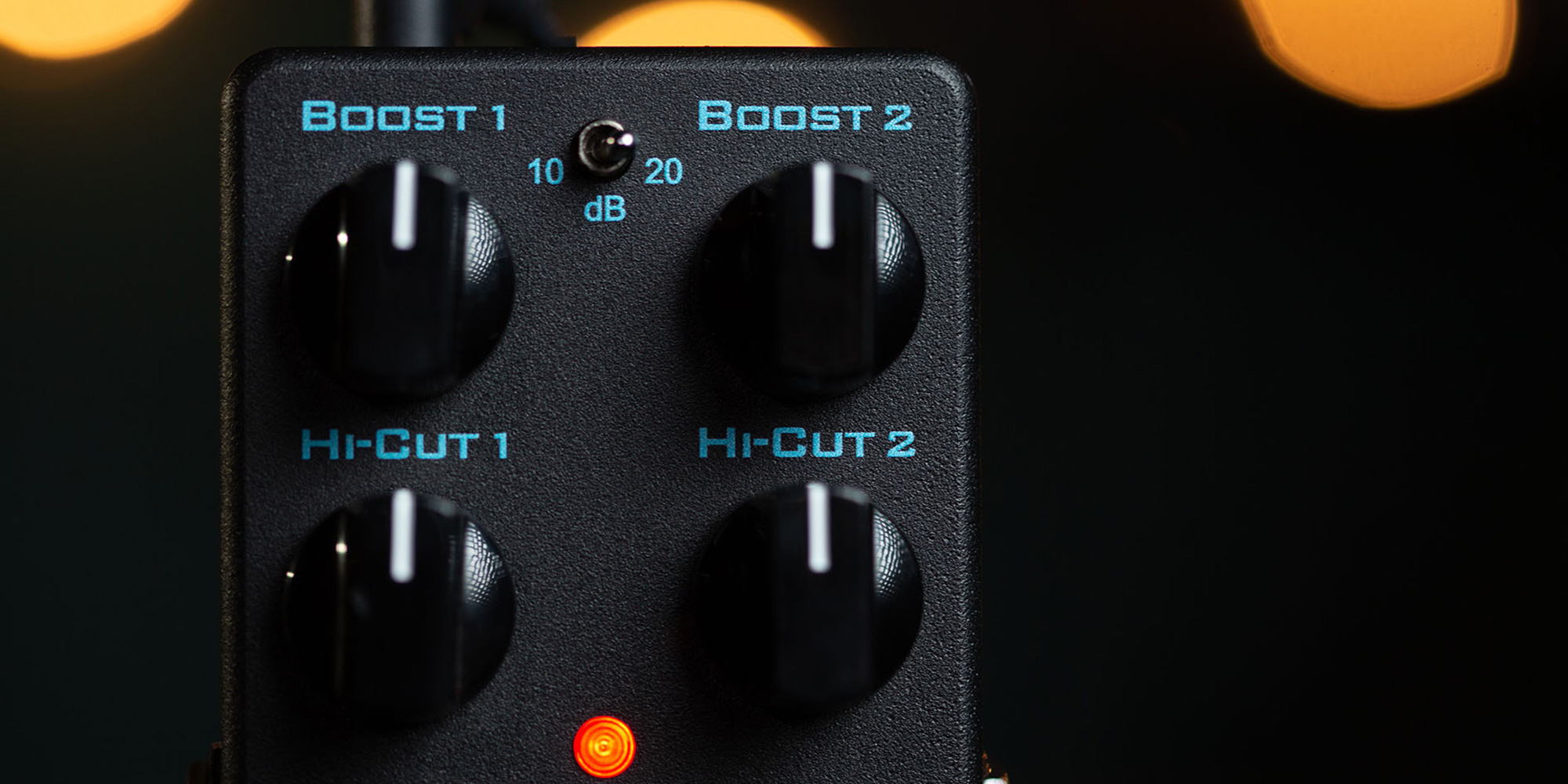

DUAL BOOST Pedal

SUH03BST0006X

Buffer/Booster/Line Driver

319,00

RIVENDITORI:
DETTAGLI:

Dual-Channel Boost

Input Impedance: 1M Ohm

Output Impedance: < 1K Ohm Power Connector: 9Vdc regulated, center negative, 2.1mm x 5.5mm Operating Voltage: 4.5V to 9V (normal 9V) Maximum Voltage: 10Vdc Reverse Battery Protection: Yes Over Voltage Protection: Yes Current Consumption: 21mA (MAX) Estimated Battery Life: 19 Hours (ON) to 19.775 (OFF) [Alakline] FX Link Connector: 1/8″ Mono FX Link Max Voltage: 3.3Vdc Shield → Tip: Activate Boost 1 Shield → Ring: Activate Boost 2 ROHS Compliant: Yes Dimensions: 2.5”(W) x 4.5”(D) x 1.25”(H) Weight: 0.6lb
