16A

MTUAXAVB16A25

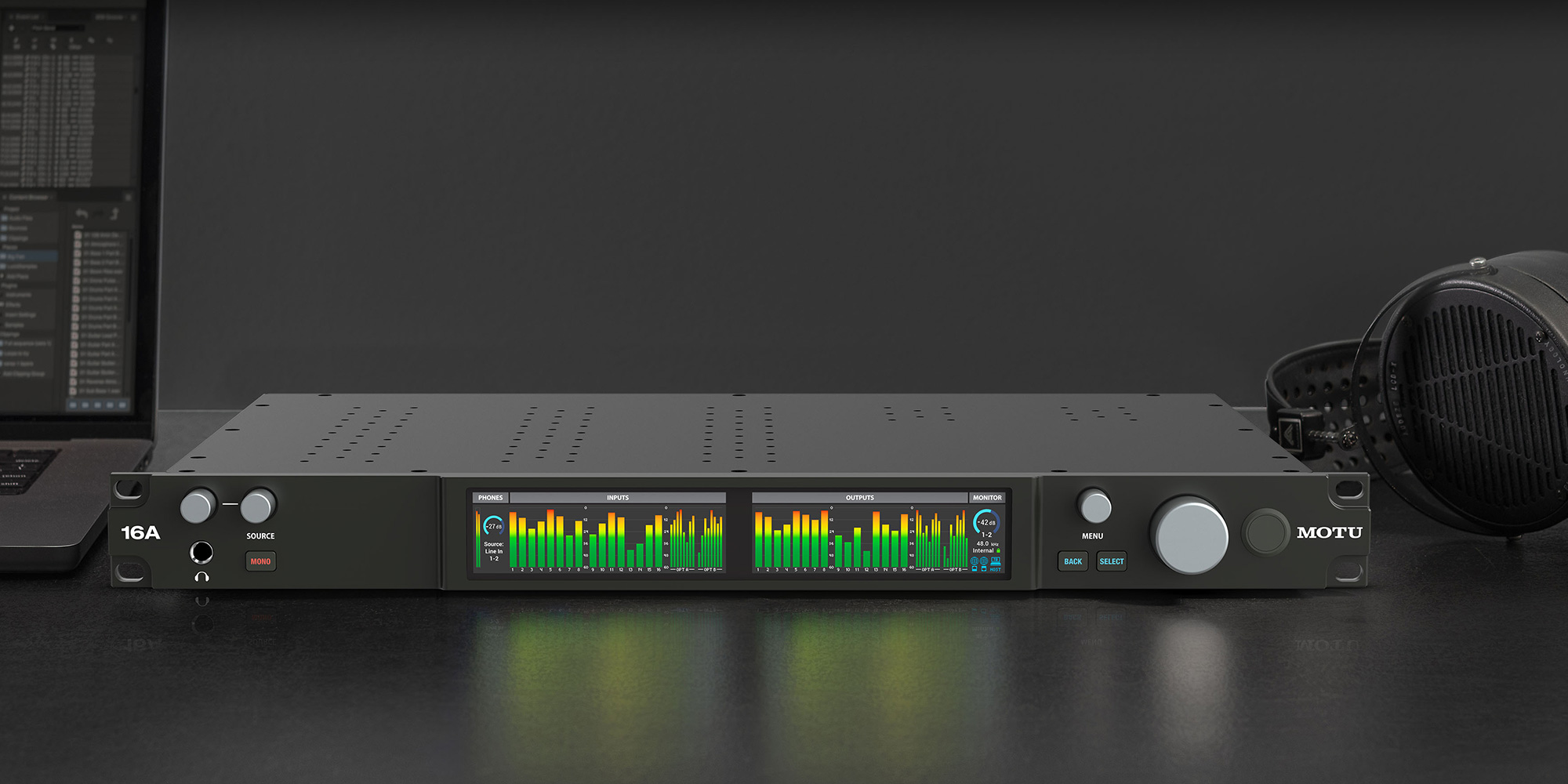

Interfaccia audio Thunderbolt/USB

La prima interfaccia audio Thunderbolt 4 / USB4 al mondo in grado di connettersi a un Mac, PC o dispositivo iOS con driver ad alte prestazioni a bassissima latenza per offrire 66 canali di I/O audio, prestazioni analogiche superbe guidate dalla rinomata tecnologia DAC ESS Sabre32™, mixaggio a 64 canali/32 bus ed elaborazione degli effetti a 32 bit integrata, tra cui riverbero, EQ a 4 bande, compressore e gate. Utilizzando le intuitive connessioni virtuali dell'applicazione CueMix Pro™, è possibile indirizzare facilmente qualsiasi segnale sorgente a qualsiasi destinazione. È possibile collegare in daisy-chain più 16A utilizzando cavi di rete standard collegati a due porte di rete AVB Gigabit, oppure realizzare una rete AVB con switch AVB. Le funzioni avanzate includono il funzionamento conforme alla classe audio USB, wordclock, selezione monitor A/B/C, talkback, rete audio AVB e controllo Wi-Fi dal telefono o dal tablet. Cavo USB-C compatibile con Thunderbolt/USB4 incluso.

1.899,00

RIVENDITORI:
DETTAGLI:

• The world’s first Thunderbolt 4 / USB4 audio interface

• 32 x 34 full-rack unit with DSP, mixing, effects, and networking

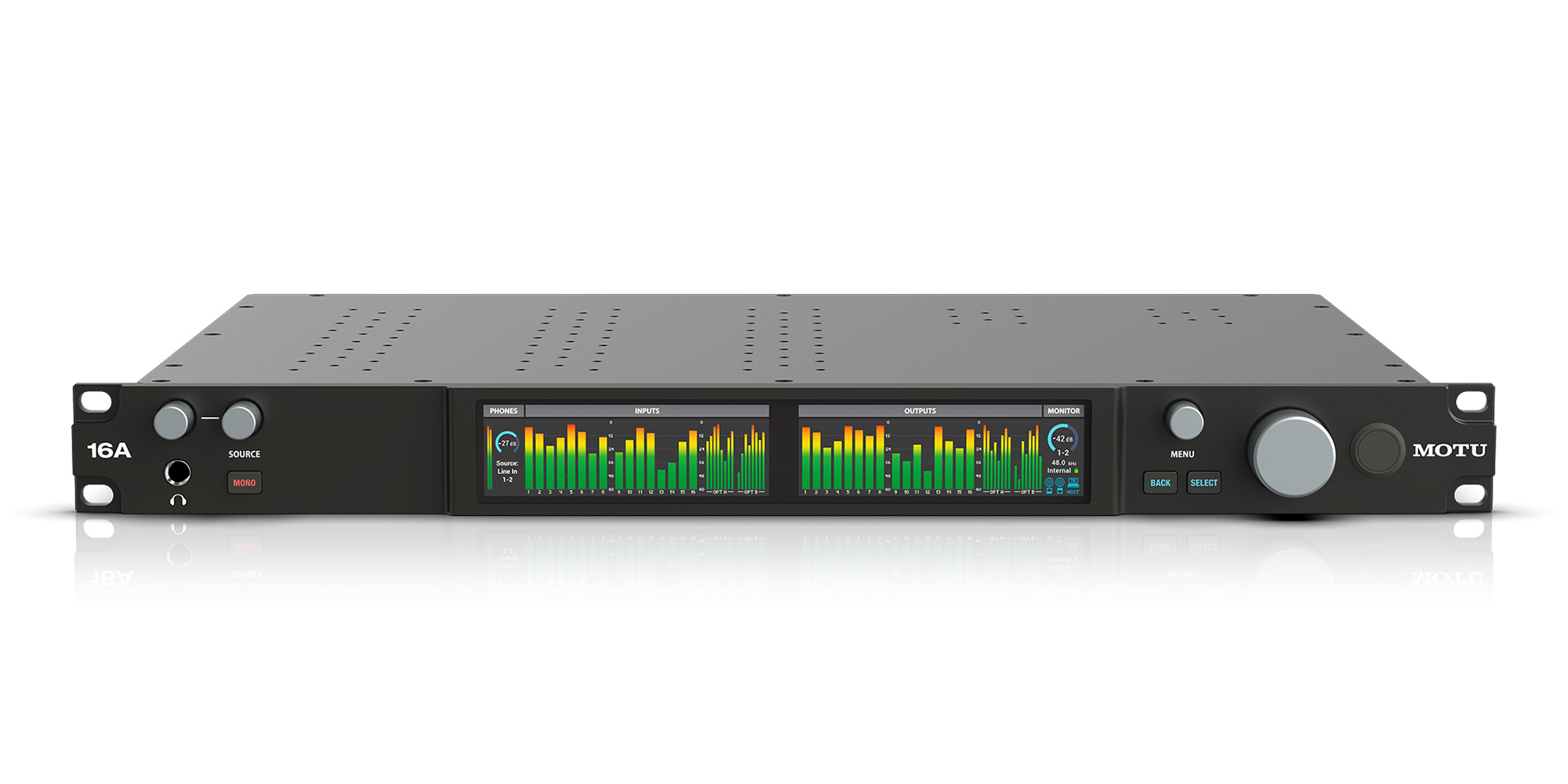

• Luxurious metering with two 3.9-inch 24-bit RGB LCD with precision metering for all I/O.

• Superb analog audio performance driven by ESS Sabre32 Ultra™ DAC Technology

• Ultra-low latency and proven, high-performance MOTU drivers (~2 ms RTL with a 32 sample buffer @ 96 kHz)

• Universal connectivity with included 40 Gbps USB-C cable (compatible with Thunderbolt 3/4, USB4, USB3 and USB2)

• 66 simultaneous audio channels (32 inputs and 34 outputs)

• DSP-driven 64-input digital mixer with 32 busses and DSP effects (reverb, 4-band EQ, gate, compressor & HPF).

• Patchbay routing and splitting with intuitive, virtual patch cords to easily route any source signal to any destination

• 2x Gigabit Ethernet ports support AVB daisy-chaining and networking with standard CAT-5/6 cables

• 16x 8-channel AVB streams in/out (128 audio channels in/out) with variable stream size (1-8 channels) per stream

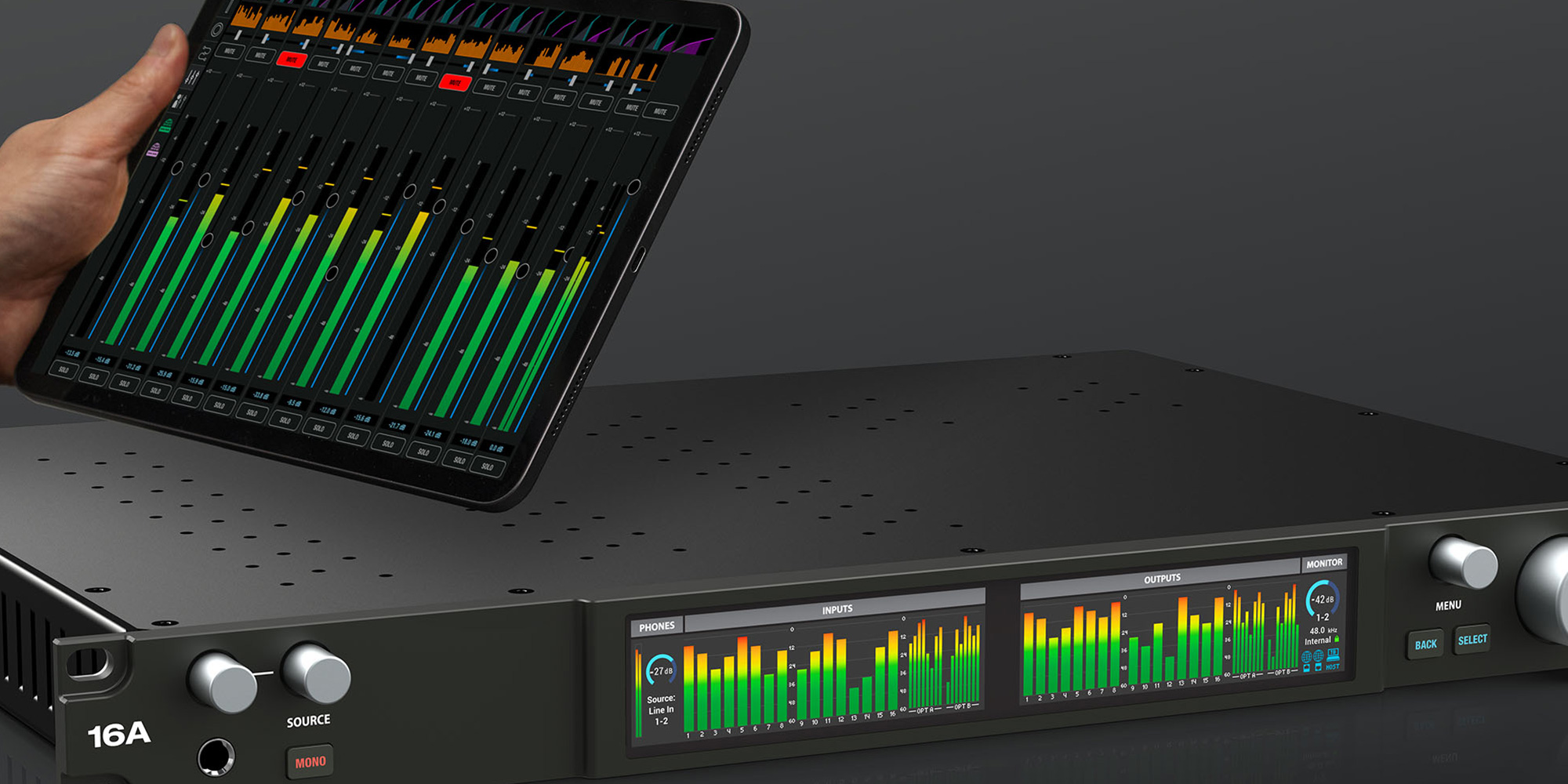

• Wi-Fi control from CueMix Pro™ app on multiple mobile devices

• Network management features (discovery and control for multiple devices on the network)

• Precision boost for all analog inputs and trim (cut) for all analog outputs in 1 dB increments

• Control room features include Talkback and A/B/C monitor select via CueMix Pro™ software

• Flexible headphone output with independent volume control and source select knob.

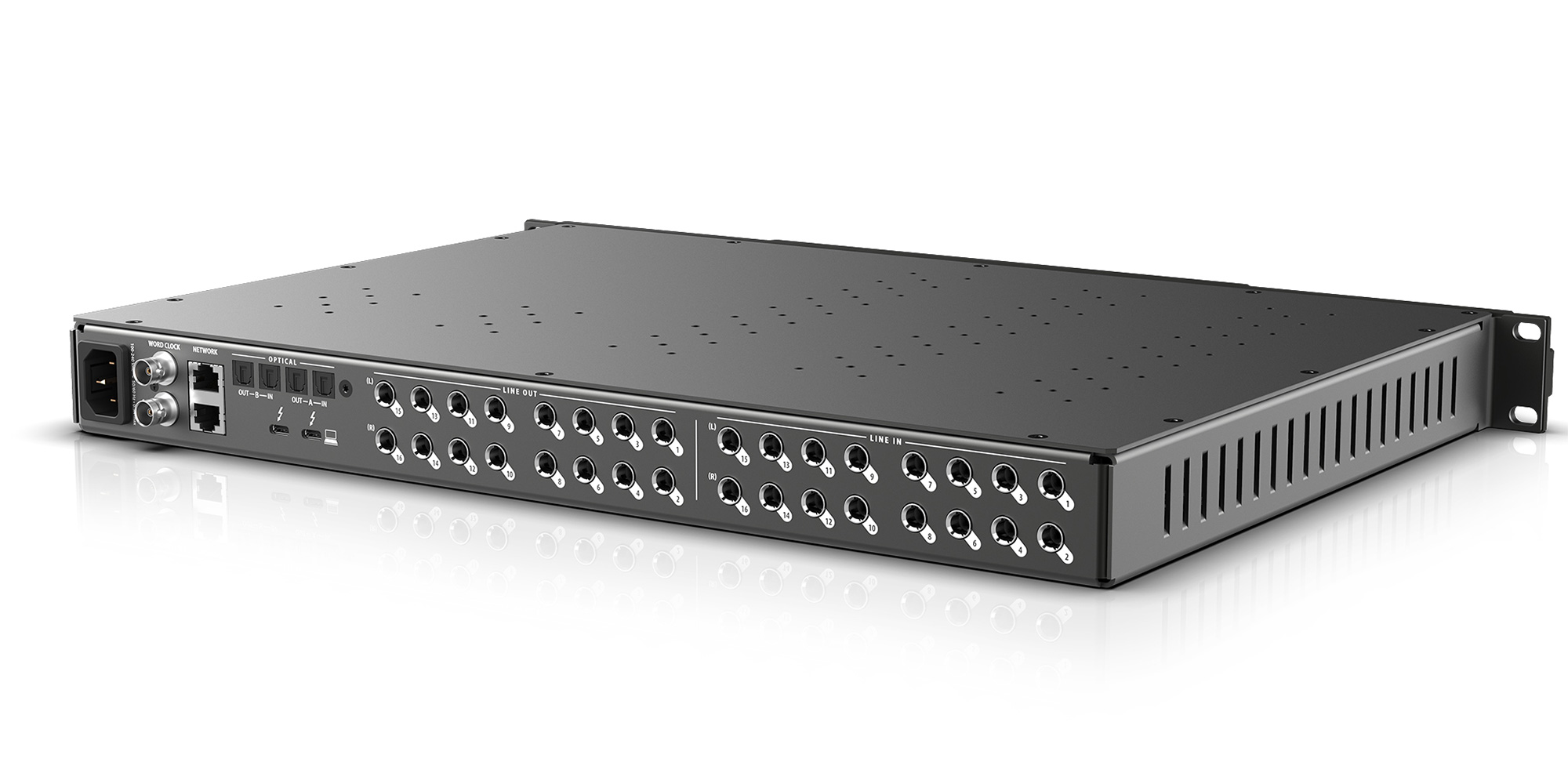

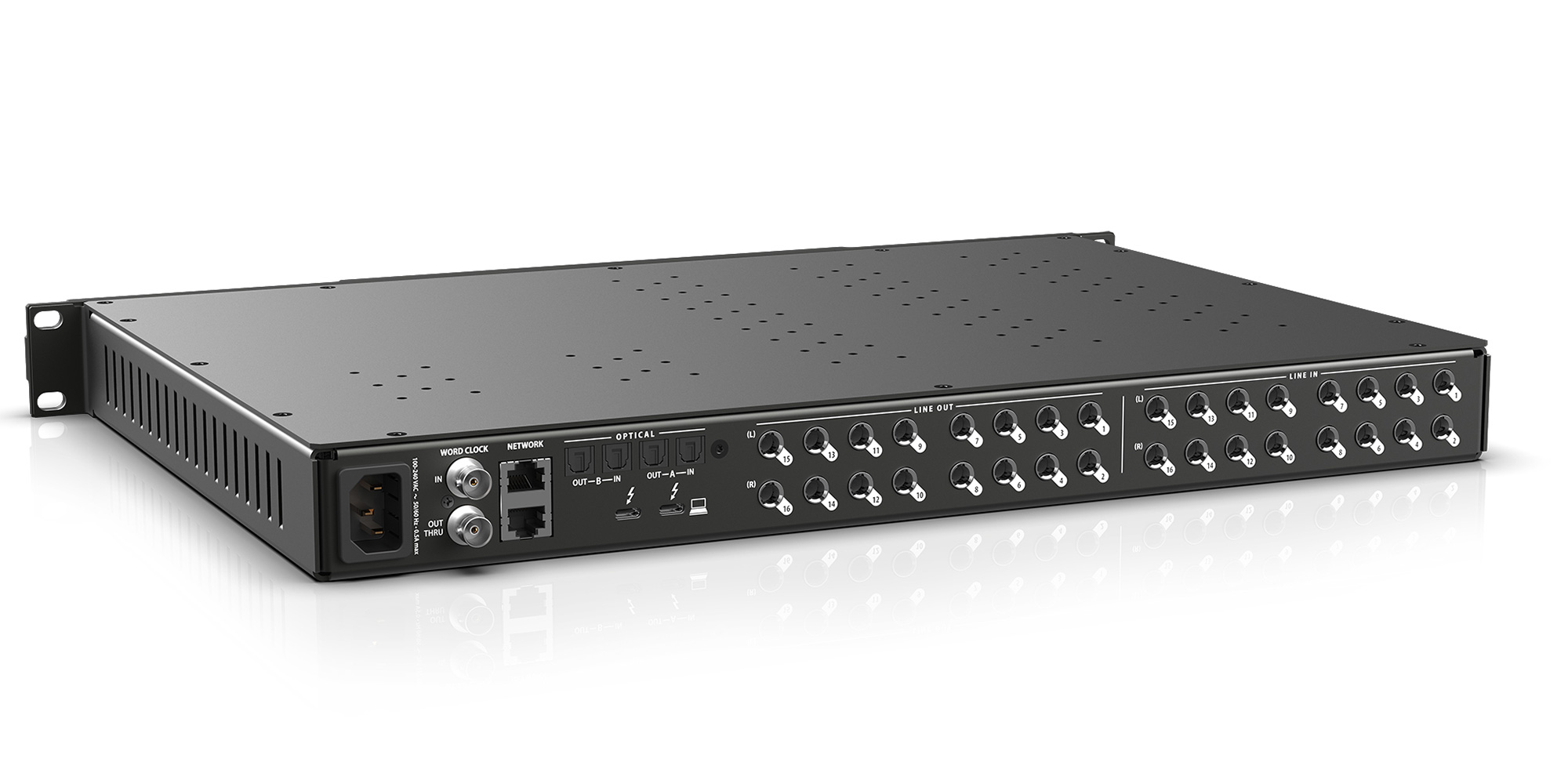

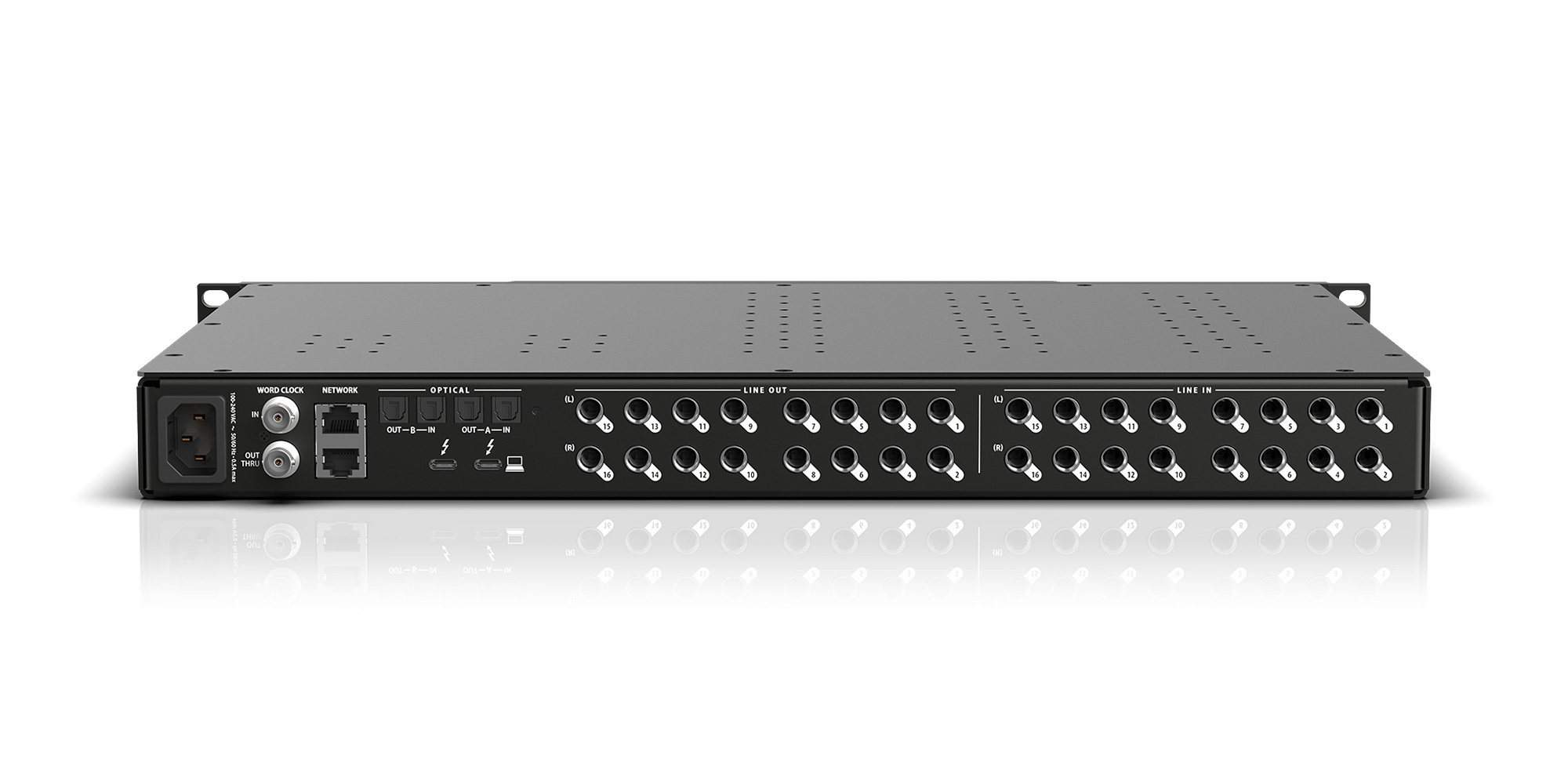

• 16x balanced, DC-coupled 1/4-inch TRS analog outputs with measured 125 dB dynamic range

• 16x balanced 1/4-inch TRS analog inputs with measured 120 dB dynamic range

• 2x banks of optical digital I/O (16 ADAT channels at 1x sample rates) with optional stereo TOSLink on Bank A

• Word clock in/out/thru

• DC-coupled TRS outputs can be used to control modular synthesizers from a host DAW using control voltage (CV)

• Support for 44.1 to 192 kHz sample rates

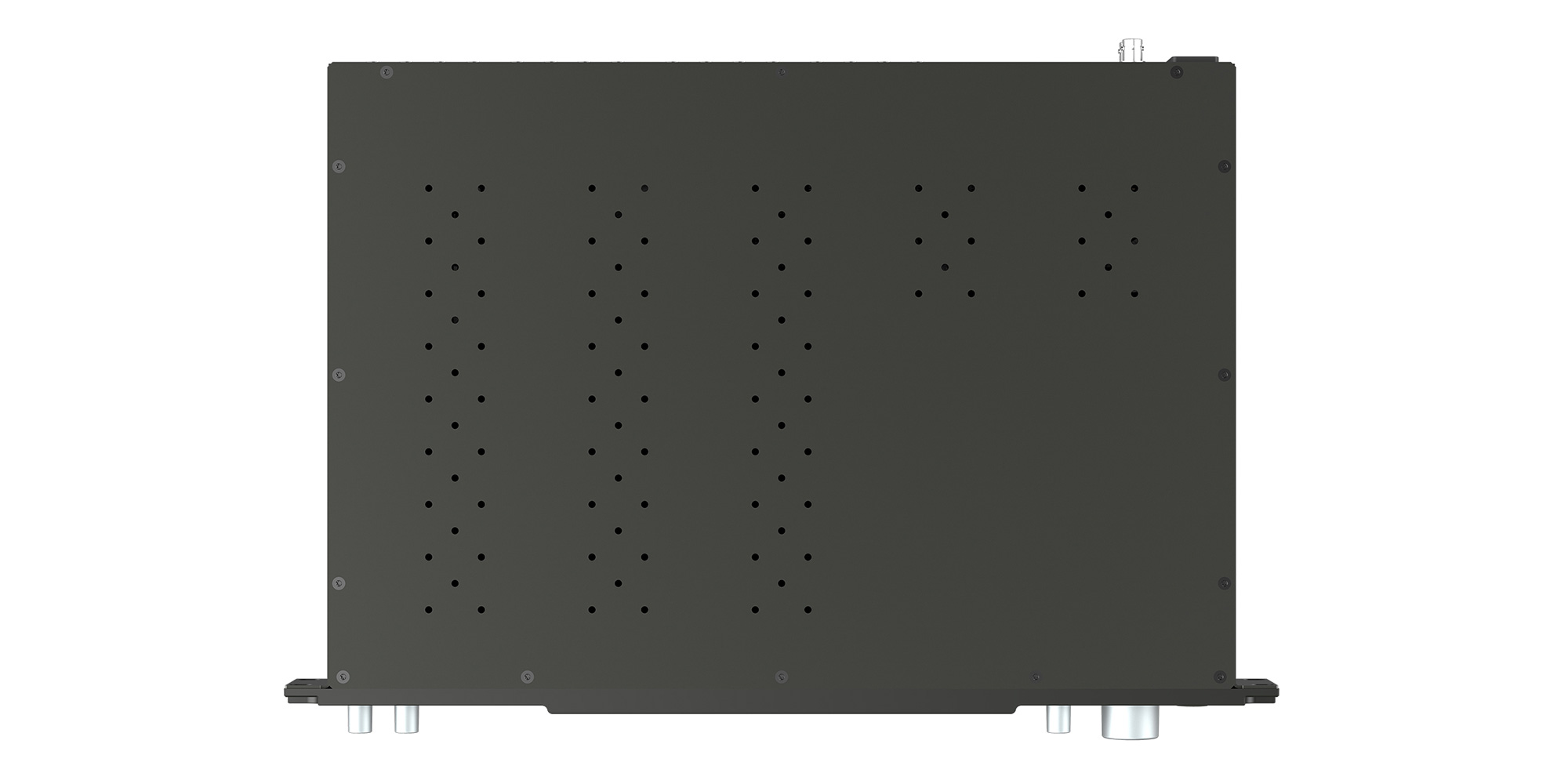

• 1-rack U form factor built with rugged steel construction

• USB audio class compliant for plug-and-play operation on macOS and iOS (no driver required)

• Loopback for mixing host software output with live 16A inputs for streaming and podcasting

• Flexible front-panel metering with meter views for analog I/O only, digital I/O only and all channels

• CueMix Pro™ app to control mixing and settings from your Mac, PC or iOS device

• MOTU Performer Lite workstation software included

• 100+ instruments (in Performer Lite)

• Over 6 GB of included free loops, samples and one-shots from industry leading libraries

• Two-year warranty
